Chapter 8 Part 4:

Client (and Server) Sockets Communication





What we have in this chapter 8 Part 4?

  1. C# Adding Simple Client Socket Project Program Example (Continue)



C# Adding Simple Client Socket Project Program Example (Continue)



Next, let do the client coding. Add the following code to ClientSocket.cs



// This is a simple TCP and UDP client application. For TCP, the server name is

// resolved and a socket is created to attempt a connection to each address

// returned until a connection succeeds. Once connected the client sends a "request"

// message to the server and shuts down the sending side. The client then loops

// to receive the server response until the server closes the connection at which

// point the client closes its socket and exits. For UDP, the server name is resolved

// and the first address returned is used (since there is no indication that there

// is a UDP server at the endpoint). The UDP client then sends a single datagram

// "request" message and then waits to receive a response from the server. The client

// continues to receive until a zero byte datagram is received. Note that the server

// sends several zero byte datagrams but if they are lost, the client will never

// exit.

//

// usage:

//      Executable_file_name [-c] [-n server] [-p port] [-m message]

//                       [-t tcp|udp] [-x size]

//           -c                         If UDP connect the socket before sending

//           -n server             Server name or address to connect/send to

//           -p port                 Port number to connect/send to

//           -m message      String message to format in request buffer

//           -t tcp|udp            Indicates to use either the TCP or UDP protocol

//           -x size                 Size of send and receive buffers

//

// sample usage:

//      The following command line establishes a TCP connection to the given server

//      on port 5150. The other two command lines are sample server command lines --

//      one for IPv4 and one for IPv6. Since the client will attempt to resolve

//      the server's name, it should attempt to connect over IPv4 and IPv6 as long

//      as the addresses are registered in DNS.

//

//          Executable_file_name -n server -p 5150 -t tcp

//          Executable_file_name -l :: -p 5150 -t tcp

//          Executable_file_name -l 0.0.0.0 -p 5150 -t tcp

//

//      The following command line creates a connected UDP socket that sends

//      data to the server x.y.z.w on port 5150. While the second entry is the

//      server command line used.

//      NOTE: For UDP sockets, the buffer size on the client and server should match

//            as an exception will be thrown if the receiving buffer is smaller than

//            the incoming datagram.

//

//          Executable_file_name -n x.y.z.w -p 5150 -t udp -c -x 512

//          Executable_file_name -l x.y.z.w -p 5150 -t udp -x 512

//

using System;

using System.Net;

using System.Net.Sockets;



/// <summary>

/// This is a simple TCP and UDP based client.

/// </summary>

namespace SocketClient

{

    class ClientSocket

    {

        /// <summary>

        /// This routine repeatedly copies a string message into a byte array until filled.

        /// </summary>

        /// <param name="dataBuffer">Byte buffer to fill with string message</param>

        /// <param name="message">String message to copy</param>

        static public void FormatBuffer(byte[] dataBuffer, string message)

        {

            byte[ ] byteMessage = System.Text.Encoding.ASCII.GetBytes(message);

            int index = 0;



            // First convert the string to bytes and then copy into send buffer

            while (index < dataBuffer.Length)

            {

                for (int j = 0; j < byteMessage.Length; j++)

                {

                    dataBuffer[index] = byteMessage[j];

                    index++;

                    // Make sure we don't go past the send buffer length

                    if (index >= dataBuffer.Length)

                    {

                        break;

                    }

                }

            }

        }



        /// <summary>

        /// Prints simple usage information.

        /// </summary>

        static public void usage()

        {

            Console.WriteLine("usage: Executable_file_name [-c] [-n server] [-p port] [-m message]");

            Console.WriteLine("                        [-t tcp|udp] [-x size]");

            Console.WriteLine("     -c              If UDP connect the socket before sending");

            Console.WriteLine("     -n server       Server name or address to connect/send to");

            Console.WriteLine("     -p port         Port number to connect/send to");

            Console.WriteLine("     -m message      String message to format in request buffer");

            Console.WriteLine("     -t tcp|udp      Indicates to use either the TCP or UDP protocol");

            Console.WriteLine("     -x size         Size of send and receive buffers");

            Console.WriteLine(" Else, default values will be used...");

        }



        /// <summary>

        /// This is the main function for the simple client. It parses the command line and creates

        /// a socket of the requested type. For TCP, it will resolve the name and attempt to connect

        /// to each resolved address until a successful connection is made. Once connected a request

        /// message is sent followed by shutting down the send connection. The client then receives

        /// data until the server closes its side at which point the client socket is closed. For

        /// UDP, the socket is created and if indicated connected to the server's address. A single

        /// request datagram message. The client then waits to receive a response and continues to

        /// do so until a zero byte datagram is receive which indicates the end of the response.

        /// </summary>

        /// <param name="args">Command line arguments</param>

        static void Main(string[] args)

        {

            SocketType sockType = SocketType.Stream;

            ProtocolType sockProtocol = ProtocolType.Tcp;

            string remoteName = "localhost", textMessage = "Client: This is a test";

            bool udpConnect = false;

            int remotePort = 5150, bufferSize = 4096;



            Console.WriteLine();

            usage();

            Console.WriteLine();



            // Parse the command line

            for (int i = 0; i < args.Length; i++)

            {

                try

                {

                    if ((args[i][0] == '-') || (args[i][0] == '/'))

                    {

                        switch (Char.ToLower(args[i][1]))

                        {

                            case 'c':       // "Connect" the UDP socket to the destination

                                udpConnect = true;

                                break;

                            case 'n':       // Destination address to connect to or send to

                                remoteName = args[++i];

                                break;

                            case 'm':       // Text message to put into the send buffer

                                textMessage = args[++i];

                                break;

                            case 'p':       // Port number for the destination

                                remotePort = System.Convert.ToInt32(args[++i]);

                                break;

                            case 't':       // Specified TCP or UDP

                                i++;

                                if (String.Compare(args[i], "tcp", true) == 0)

                                {

                                    sockType = SocketType.Stream;

                                    sockProtocol = ProtocolType.Tcp;

                                }

                                else if (String.Compare(args[i], "udp", true) == 0)

                                {

                                    sockType = SocketType.Dgram;

                                    sockProtocol = ProtocolType.Udp;

                                }

                                else

                                {

                                    usage();

                                    return;

                                }

                                break;

                            case 'x':       // Size of the send and receive buffers

                                bufferSize = System.Convert.ToInt32(args[++i]);

                                break;

                            default:

                                usage();

                                return;

                        }

                    }

                }

                catch

                {

                    usage();

                    return;

                }

            }



            Socket clientSocket = null;

            IPHostEntry resolvedHost = null;

            IPEndPoint destination = null;

            byte[ ] sendBuffer = new byte[bufferSize], recvBuffer = new Byte[bufferSize];

            int rc;



            // Format the string message into the send buffer

            FormatBuffer(sendBuffer, textMessage);



            try

            {

                // Try to resolve the remote host name or address

                resolvedHost = Dns.GetHostEntry(remoteName);

                Console.WriteLine("Client: GetHostEntry() is OK...");



                // Try each address returned

                foreach (IPAddress addr in resolvedHost.AddressList)

                {

                    // Create a socket corresponding to the address family of the resolved address

                    clientSocket = new Socket(

                        addr.AddressFamily,

                        sockType,

                        sockProtocol

                        );

                    Console.WriteLine("Client: Socket() is OK...");

                    try

                    {

                        // Create the endpoint that describes the destination

                        destination = new IPEndPoint(addr, remotePort);

                        Console.WriteLine("Client: IPEndPoint() is OK. IP Address: {0}, server port: {1}", addr, remotePort);



                        if ((sockProtocol == ProtocolType.Udp) && (udpConnect == false))

                        {

                            Console.WriteLine("Client: Destination address is: {0}", destination.ToString());

                            break;

                        }

                        else

                        {

                            Console.WriteLine("Client: Attempting connection to: {0}", destination.ToString());

                        }

                        clientSocket.Connect(destination);

                        Console.WriteLine("Client: Connect() is OK...");

                        break;

                    }

                    catch (SocketException)

                    {

                        // Connect failed, so close the socket and try the next address

                        clientSocket.Close();

                        Console.WriteLine("Client: Close() is OK...");

                        clientSocket = null;

                        continue;

                    }

                }



                // Make sure we have a valid socket before trying to use it

                if ((clientSocket != null) && (destination != null))

                {

                    try

                    {

                        // Send the request to the server

                        if ((sockProtocol == ProtocolType.Udp) && (udpConnect == false))

                        {

                            clientSocket.SendTo(sendBuffer, destination);

                            Console.WriteLine("Client: SendTo() is OK...UDP...");

                        }

                        else

                        {

                            rc = clientSocket.Send(sendBuffer);

                            Console.WriteLine("Client: send() is OK...TCP...");

                            Console.WriteLine("Client: Sent request of {0} bytes", rc);



                            // For TCP, shutdown sending on our side since the client won't send any more data

                            if (sockProtocol == ProtocolType.Tcp)

                            {

                                clientSocket.Shutdown(SocketShutdown.Send);

                                Console.WriteLine("Client: Shutdown() is OK...");

                            }

                        }



                        // Receive data in a loop until the server closes the connection. For

                        //    TCP this occurs when the server performs a shutdown or closes

                        //    the socket. For UDP, we'll know to exit when the remote host

                        //    sends a zero byte datagram.

                        while (true)

                        {

                            if ((sockProtocol == ProtocolType.Tcp) || (udpConnect == true))

                            {

                                rc = clientSocket.Receive(recvBuffer);



                                Console.WriteLine("Client: Receive() is OK...");

                                Console.WriteLine("Client: Read {0} bytes", rc);

                            }

                            else

                            {

                                IPEndPoint fromEndPoint = new IPEndPoint(destination.Address, 0);

                                Console.WriteLine("Client: IPEndPoint() is OK...");

                                EndPoint castFromEndPoint = (EndPoint)fromEndPoint;

                                rc = clientSocket.ReceiveFrom(recvBuffer, ref castFromEndPoint);

                                Console.WriteLine("Client: ReceiveFrom() is OK...");

                                fromEndPoint = (IPEndPoint)castFromEndPoint;

                                Console.WriteLine("Client: Read {0} bytes from {1}", rc, fromEndPoint.ToString());

                            }



                            // Exit loop if server indicates shutdown

                            if (rc == 0)

                            {

                                clientSocket.Close();

                                Console.WriteLine("Client: Close() is OK...");

                                break;

                            }

                        }

                    }

                    catch (SocketException err)

                    {

                        Console.WriteLine("Client: Error occurred while sending or receiving data.");

                        Console.WriteLine("   Error: {0}", err.Message);

                    }

                }

                else

                {

                    Console.WriteLine("Client: Unable to establish connection to server!");

                }

            }

            catch (SocketException err)

            {

                Console.WriteLine("Client: Socket error occurred: {0}", err.Message);

            }

        }

    }

}



Build the client program and make sure there is no error.



C# Simple Client Server Socket Program Example - building the client project independently



Run the client program.



C# Simple Client Server Socket Program Example - running the client project independently





C# Simple Client Server Socket Program Example - a sample of client output using default argument values



C# Simple Client Server Socket Program Example - a sample of client output using default argument values when run from command prompt



C# Simple Client Server Socket Program Example - a sample of client output using tcp protocol



C# Simple Client Server Socket Program Example - a sample of client output using udp protocol



Well, we can’t see the real communication without running both client and server programs simultaneously. In this case we copy both executables (under the Debug folder – SimpleSocketCS.exe - server and SocketClient.exe - client) to the C:\, run the server program and then the client program at the command prompt.



C# Simple Client Server Socket Program Example - the two project folders under a single solution



C# Simple Client Server Socket Program Example - the server executable file



C# Simple Client Server Socket Program Example - the client executable file

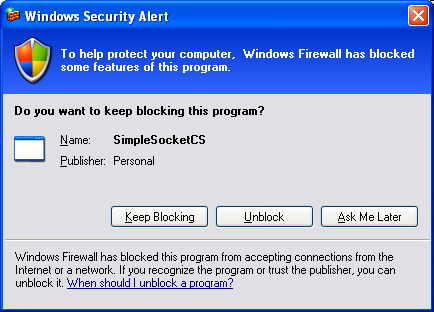

If the following Windows Security Alert box displayed, click the Unblock button.



C# Simple Client Server Socket Program Example - the Windows Security Alert message box



Run the server program and the following is a sample output.



C# Simple Client Server Socket Program Example - running the server program, waiting for connection



Next, run the client program.



C# Simple Client Server Socket Program Example - running the client program and got connected to the server



The following is the server output screenshot when the communication was completed.



C# Simple Client Server Socket Program Example - the server output sample when the communication was completed
