Chapter 8 Part 29:

Client (and Server) Sockets Communication





What do we have in this chapter 8 Part 29?

  1. VB .NET TcpListener Program Example

  2. C++ TCP Client Program Example





VB .NET TcpListener Program Example



Create a new class library project and you might want to use TcpListenertSampleVB as the name.



VB .NET TcpListener Program Example - creating a new class library project in Visual Studio 2008





Next, rename the class to tcplistenersample by renaming the source file name to reflect the application that we are going to developed.



VB .NET TcpListener Program Example - renaming the source file automatically renaming the class



Add/edit the following Import directives at the top of the file.



Imports System

Imports System.Net

Imports System.Net.Sockets



Next, add the usage() subroutine and its code



' Displays simple usage information.

    Shared Sub usage()

        Console.WriteLine("Usage: TcpListenerSampleVB [-l address] [-p port] [-x size]")

        Console.WriteLine()

        Console.WriteLine("Available options:")

        Console.WriteLine("     -l address      Local address for TCP server to listen on")

        Console.WriteLine("     -p port         Local port for TCP server to listen on")

        Console.WriteLine("     -x size         Size of send and receive buffers")

        Console.WriteLine()

    End Sub



Then, add the Main() subroutine code.



    ' <param name="args">Command line arguments</param>

    Shared Sub Main()

        Dim listenInterface As IPAddress = IPAddress.Any

        Dim listenPort As Short = 5150

        Dim bufferSize As Integer = 4096

        Dim i As Integer



        ' Parse the command line

        Dim args As String() = Environment.GetCommandLineArgs()



        usage()



        For i = 1 To args.GetUpperBound(0) - 1

            Try

                Dim CurArg() As Char = args(i).ToCharArray(0, args(i).Length)

                If (CurArg(0) = "-") Or (CurArg(0) = "/") Then

                    Select Case Char.ToLower(CurArg(1), System.Globalization.CultureInfo.CurrentCulture)

                        Case "l"        ' Local interface server should listen on

                            i = i + 1

                            listenInterface = IPAddress.Parse(args(i))

                        Case "p"        ' Port number for the destination

                            i = i + 1

                            listenPort = System.Convert.ToInt16(args(i))

                        Case "x"        ' Size of the send and receive buffers

                            i = i + 1

                            bufferSize = System.Convert.ToInt32(args(i))

                        Case Else

                            usage()

                            Exit Sub

                    End Select

                End If



            Catch e As Exception

                usage()

                Exit Sub

            End Try



        Next



        Dim tcpServer As TcpListener = Nothing

        Dim tcpClient As tcpClient = Nothing

        Dim tcpStream As NetworkStream = Nothing

        Dim sendBuffer(bufferSize) As Byte

        Dim receiveBuffer(bufferSize) As Byte

        Dim byteCount() As Byte

        Dim bytesToRead As Integer = 0

        Dim nextReadCount, rc As Integer



        ' Initialize the send buffer

        Console.WriteLine("Initializing the send buffer...")

        For i = 0 To sendBuffer.Length - 1

            sendBuffer(i) = CByte(65)

        Next



        Try

            ' Create the TCP server

            Console.WriteLine("Creating the TCP server...")

            tcpServer = New TcpListener(listenInterface, listenPort)



            Console.WriteLine("TcpListener created on address {0} and port {1}", _

                listenInterface.ToString(), _

                listenPort.ToString() _

                )



            ' Start listening for connections

            Console.WriteLine("Start listening for connections...")

            tcpServer.Start()



            ' Wait for a client connection

            Console.WriteLine("Waiting for a client connection...")

            tcpClient = tcpServer.AcceptTcpClient()



            ' Get the NetworkStream so we can do Read and Write on the client connection

            Console.WriteLine("Getting the NetworkStream for Reading and Writing on the client connection...")

            tcpStream = tcpClient.GetStream()

            byteCount = BitConverter.GetBytes(bytesToRead)



            ' First read the number of bytes the client is sending

            Console.WriteLine("Reading the number of bytes the client is sending...")

            tcpStream.Read(byteCount, 0, byteCount.Length)

            bytesToRead = BitConverter.ToInt32(byteCount, 0)



            ' Receive the data

            Console.WriteLine("Receive, Read & display data...")

            While (bytesToRead > 0)

                ' Make sure we don't read beyond what the first message indicates

                '    This is important if the client is sending multiple "messages" --

                '    but in this sample it sends only one

                If (bytesToRead < receiveBuffer.Length) Then

                    nextReadCount = bytesToRead

                Else

                    nextReadCount = receiveBuffer.Length

                End If



                ' Read some data

                rc = tcpStream.Read(receiveBuffer, 0, nextReadCount)



                ' Display what we read

                Dim readText As String = System.Text.Encoding.ASCII.GetString(receiveBuffer, 0, rc)

                Console.WriteLine("Received: {0}", readText)



                bytesToRead -= rc

            End While



            ' First send the number of bytes the server is responding with

            Console.WriteLine("Sending the number of bytes the server is responding with...")

            byteCount = BitConverter.GetBytes(sendBuffer.Length)



            tcpStream.Write(byteCount, 0, byteCount.Length)



            ' Send the actual data

            Console.WriteLine("Send the actual data...")

            tcpStream.Write(sendBuffer, 0, sendBuffer.Length)



            ' Close up the client

            Console.WriteLine("Closing up the client...")

            tcpStream.Close()

            tcpStream = Nothing



            tcpClient.Close()

            tcpClient = Nothing



        Catch err As SocketException

            ' Exceptions on the TcpListener are caught here

            Console.WriteLine("Socket error occurred: {0}", err.Message)



        Catch err As System.IO.IOException

            ' Exceptions on the NetworkStream are caught here

            Console.WriteLine("I/O error: {0}", err.Message)



        Finally

            ' Close any remaining open resources

            Console.WriteLine("Closing any remaining open resources...")

            If (Not IsNothing(tcpServer)) Then

                tcpServer.Stop()

            End If

            If (Not IsNothing(tcpStream)) Then

                tcpStream.Close()

            End If

            If (Not IsNothing(tcpClient)) Then

                tcpClient.Close()

            End If

        End Try

    End Sub



Next, we need to change the DLL to EXE type program so that we can run it n console mode. Select the project folder > Right click mouse > Select Properties context menu.



VB .NET TcpListener Program Example - invoking the projject's property page from the VS 2008 IDE



In order to test his project, change the Application type: to Console Application and the Startup object: to Sub Main.



VB .NET TcpListener Program Example - changing the Application type: to Console Application and the Startup object: to Main() subroutine



Next, build the project and make sure there is no error that can be seen in the Output window if any.



VB .NET TcpListener Program Example - building the project



Then, run the project. Any error will be thrown by the exception handlers.



VB .NET TcpListener Program Example - running the project



If the following Windows Security Alert box displayed, click the Unblock button.



VB .NET TcpListener Program Example -- unblocking the Windows firewall protection



The following is the sample output that uses the default values.



VB .NET TcpListener Program Example - a sample output



Testing the tcp listener with the tcp client. In this case we use the TcpClientSampleVB program as a client. Firstly, we run the listener.



VB .NET TcpListener Program Example - a sample output, running the TCP listener, listening for connection



Next, run the client tcp.



VB .NET TcpListener Program Example - a sample output - running the client, sending and receiving some data



The following is the tcp listener screenshot after the communication was completed.



VB .NET TcpListener Program Example - the TCP listener screen when the communication with the TCP client was completed



You may want to test this program on real network with the listener and the client run on different hosts and try using the available options.



C++ TCP Client Program Example

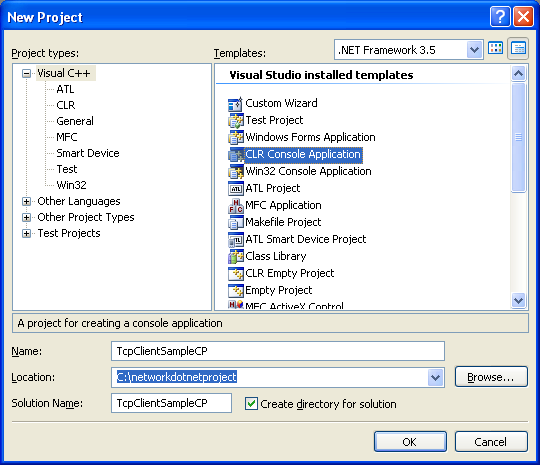

Create a new CLR console application project and you might want to use TcpClientSampleCP as the name.



C++ TCP Client Program Example - creating a new CLR console application project in Visual Studio 2008 IDE



Add the following code.



// TcpClientSampleCP.cpp : main project file.



#include "stdafx.h"



using namespace System;

using namespace System::Net;

using namespace System::Net::Sockets;



/// <summary>

/// Displays simple usage information.

/// </summary>

static void usage()

{

    Console::WriteLine("Usage: TcpClientSample.exe [-n server] [-p port] [-x size]");

    Console::WriteLine("Available options:");

    Console::WriteLine("     -n server       Name or address of server to connect to");

    Console::WriteLine("     -p port         Port number to connect to server on");

    Console::WriteLine("     -x size         Size of send and receive buffers");

    Console::WriteLine();

}



int main(array<System::String ^> ^args)

{

    // Initial/default values

    String^ serverAddress = "localhost";

    unsigned short serverPort = 5150;

    int bufferSize = 1024;



    // Parse the command line

    if(args->Length != 0)

    {

    for (int i = 0; i < args->Length; i++)

    {

        try

        {

            if ((args[i][0] == '-') || (args[i][0] == '/'))

            {

                switch (Char::ToLower(args[i][1]))

                {

                    case 'n':       // String name or address of server to connect to

                        serverAddress = args[++i];

                        break;

                    case 'p':       // Port number for the destination

                        serverPort = Convert::ToUInt16(args[++i]);

                        break;

                    case 'x':       // Size of the send and receive buffers

                        bufferSize = Convert::ToInt32(args[++i]);

                        break;

                    default:

                        usage();

                        return 0;

                }

            }

        }

        catch(Exception^ err)

        {

            Console::WriteLine("TCP client: Error - {0}", err->Message);

            usage();

            return 0;

        }

    }

}

else

{

     usage();

     return 0;

}



    TcpClient^ simpleTcp = nullptr;

    NetworkStream^ tcpStream = nullptr;

    array<Byte>^ sendBuffer = gcnew array<Byte>(bufferSize);

    array<Byte>^ receiveBuffer = gcnew array<Byte>(bufferSize);

    array<Byte>^ byteCount;

    int bytesToRead = 0, nextReadCount, rc;



    // Initialize the send buffer

    Console::WriteLine("TCP client: Initializing the send buffer...");

    for (int i = 0; i < sendBuffer->Length; i++)

        sendBuffer[i] = (Byte)'X';



    try

    {

        // Create the client and indicate the server to connect to

        Console::WriteLine("TCP client: Creating the client and indicate the server to connect to...");

        simpleTcp = gcnew TcpClient(serverAddress, (int)serverPort);



        // Retrieve the NetworkStream so we can do Read and Write

        Console::WriteLine("TCP client: Retrieving the NetworkStream so we can do Read and Write...");

        tcpStream = simpleTcp->GetStream();



        // First send the number of bytes the client is sending

        Console::WriteLine("TCP client: Sending the number of bytes the client is sending...");

        byteCount = BitConverter::GetBytes(sendBuffer->Length);

        tcpStream->Write(byteCount, 0, byteCount->Length);



        // Send the actual data

        Console::WriteLine("TCP client: Sending the actual data...");

        tcpStream->Write(sendBuffer, 0, sendBuffer->Length);

        tcpStream->Read(byteCount, 0, byteCount->Length);



        // Read how many bytes the server is responding with

        Console::WriteLine("TCP client: Reading how many bytes the server is responding with...");

        bytesToRead = BitConverter::ToInt32(byteCount, 0);



        // Receive the data

        Console::WriteLine("TCP client: Receiving, reading & displaying the data...");

        while (bytesToRead > 0)

        {

            // Make sure we don't read beyond what the first message indicates

            //    This is important if the client is sending multiple "messages" --

            //    but in this sample it sends only one

            if (bytesToRead < receiveBuffer->Length)

                nextReadCount = bytesToRead;

            else

                nextReadCount = receiveBuffer->Length;



            // Read the data

            rc = tcpStream->Read(receiveBuffer, 0, nextReadCount);



            // Display what was read

            String^ readText = Text::Encoding::ASCII->GetString(receiveBuffer, 0, rc);

            Console::WriteLine("TCP client: Received: {0}", readText);

            bytesToRead -= rc;

        }

    }

    catch (SocketException^ err)

    {

        // Exceptions on the TcpListener are caught here

        Console::WriteLine("Socket error\n  - {0}", err->Message);

    }

    catch (IO::IOException^ err)

    {

        // Exceptions on the NetworkStream are caught here

        Console::WriteLine("TCP client: I/O error: {0}", err->Message);

    }

    finally

    {

        // Close any remaining open resources

        Console::WriteLine("TCP client: Closing all the opening resources...");

        if (tcpStream != nullptr)

            tcpStream->Close();

        if (simpleTcp != nullptr)

            simpleTcp->Close();

    }

    return 0;

}





Next, build the project and make sure there is no error. Then, run the project. Any error will be thrown by the exception handlers. The following is the sample output.



C++ TCP Client Program Example - a sample output when run from the command prompt



The following are sample outputs when run at the command prompt for tcp listener and tcp client. The listener program used is the previously created, TcpListenerSampleCP.exe. Firstly, we run the listener. The listener is waiting a connection from client.



C++ TCP Client Program Example - running the TCP listener to test the TCP client, the listener is listening for connection



Then we run the tcp client.



C++ TCP Client Program Example - the TCP client listener in action



The following is the tcp listener output screenshot when the communication was completed.



C++ TCP Client Program Example - the TCP listener screen when the communication was completed



You may want to test this program on real network with the listener and the client run on different hosts and try using different available options.










< C++ & C# TcpListener Examples | Main | C# & VB .NET TCP Client Examples >
