Chapter 8 Part 32:

Client (and Server) Sockets Communication





What do we have in this chapter 8 Part 32?

  1. VB .NET UDP Client and Server Program Example

  2. Code Access Security





VB .NET UDP Client and Server Program Example



Create a new class library project and you might want to use UdpClientSampleVB as the name.



VB .NET UDP Client and Server Program Example - creating a new class library project in VS 2008 IDE





Next, rename the class to udpclientsample by renaming the source file just to reflect the application to be developed.



VB .NET UDP Client and Server Program Example - renaming the source file will automatically rename the class



Add/edit the following Import directives at the top of the file.



Imports System

Imports System.Net

Imports System.Net.Sockets

Imports System.Collections



Add the following usage() subroutine in side the class.



' Displays simple usage information.

    Shared Sub usage()

        Console.WriteLine("Usage: UdpClientSampleVB [-m mcast] [-l local-ip] [-n count]")

        Console.WriteLine("Available options:")

        Console.WriteLine()

        Console.WriteLine("                           [-p port] [-r] [-s destination] [-x size]")

        Console.WriteLine("     -m mcast            Multicast group to join. May be specified multiple")

        Console.WriteLine("                            times. For IPv6 include interface to join group on")

        Console.WriteLine("                            as the scope id (e.g. ff12::1%4)")

        Console.WriteLine("     -l local-ip         Local IP address to bind to")

        Console.WriteLine("     -n count            Number of times to send a message")

        Console.WriteLine("     -p port             Port number: local port for receiver, remote port for sender")

        Console.WriteLine("     -r                  Receive UDP data")

        Console.WriteLine("     -s destination      Send UDP data to given destination")

        Console.WriteLine("     -x size             Size of send and receive buffers")

        Console.WriteLine()

    End Sub



Add the Main() subroutine and its code.



    Shared Sub Main()

        Dim multicastGroups As ArrayList = New ArrayList

        Dim localAddress As IPAddress = IPAddress.Any

        Dim destAddress As IPAddress = Nothing

        Dim portNumber As Short = 5150

        Dim udpSender As Boolean = False

        Dim bufferSize As Integer = 256

        Dim sendCount As Integer = 5

        Dim i As Integer



        ' Parse the command line

        Dim args As String() = Environment.GetCommandLineArgs()



        usage()



        For i = 1 To args.GetUpperBound(0) - 1

            Try

                Dim CurArg() As Char = args(i).ToCharArray(0, args(i).Length)

                If (CurArg(0) = "-") Or (CurArg(0) = "/") Then

                    Select Case Char.ToLower(CurArg(1), System.Globalization.CultureInfo.CurrentCulture)

                        Case "m"        ' Multicast groups to join

                            i = i + 1

                            multicastGroups.Add(IPAddress.Parse(args(i)))

                        Case "l"        ' Local interface to bind to

                            i = i + 1

                            localAddress = IPAddress.Parse(args(i))

                        Case "n"        ' Number of times to send the response

                            i = i + 1

                            sendCount = System.Convert.ToInt32(args(i))

                        Case "p"        ' Port number (local for receiver, remote for sender)

                            i = i + 1

                            portNumber = System.Convert.ToInt16(args(i))

                        Case "r"        ' Indicates UDP receiver

                            udpSender = False

                        Case "s"        ' Indicates UDP sender as well as the destination address

                            udpSender = True

                            i = i + 1

                            destAddress = IPAddress.Parse(args(i))

                        Case "x"        ' Size of the send and receive buffers

                            i = i + 1

                            bufferSize = System.Convert.ToInt32(args(i))

                        Case Else

                            usage()

                            Exit Sub

                    End Select

                End If

            Catch e As Exception

                usage()

                Exit Sub

            End Try

        Next



        Dim udpSocket As UdpClient = Nothing

        Dim sendBuffer(bufferSize) As Byte

        Dim receiveBuffer(bufferSize) As Byte

        Dim rc As Integer



        Try

            ' Create an unconnected socket since if invoked as a receiver we don't necessarily

            '    want to associate the socket with a single endpoint. Also, for a sender socket

            '    specify local port of zero (to get a random local port) since we aren't receiving

            '    anything.

            Console.WriteLine("Creating a connectionless socket...")

            If (udpSender = False) Then

                udpSocket = New UdpClient(New IPEndPoint(localAddress, portNumber))

            Else

                udpSocket = New UdpClient(New IPEndPoint(localAddress, 0))

            End If

            ' Join any multicast groups specified

            Console.WriteLine("Joining any multicast groups specified...")

            For i = 0 To multicastGroups.Count - 1



                If (localAddress.AddressFamily = AddressFamily.InterNetwork) Then

                    ' For IPv4 multicasting only the group is specified and not the

                    '    local interface to join it on. This is bad as on a multihomed

                    '    machine, the application won't really know which interface

                    '    it is joined on (and there is no way to change it via the UdpClient).

                    udpSocket.JoinMulticastGroup(CType(multicastGroups(i), IPAddress))

                ElseIf (localAddress.AddressFamily = AddressFamily.InterNetworkV6) Then

                    ' For some reason, the IPv6 multicast join allows the local interface index

                    '    to be specified such that the application can join multiple groups on

                    '    any interface which is great (but lacking in IPv4 multicasting with the

                    '    UdpClient). IPv6 multicast groups should be specified with the scope id

                    '    when passed on the command line (e.g. fe80::1%4).

                    udpSocket.JoinMulticastGroup( _

                        CType(multicastGroups(i), IPAddress).ScopeId, _

                        CType(multicastGroups(i), IPAddress))

                End If

            Next

            ' If you want to send data with the UdpClient it must be connected -- either by

            '    specifying the destination in the UdpClient constructor or by calling the

            '    Connect method. You can call the Connect method multiple times to associate

            '    a different endpoint with the socket.

            Console.WriteLine("Connecting...")

            If (udpSender = True) Then

                udpSocket.Connect(destAddress, portNumber)

                Console.WriteLine("Connect() is OK...")

            End If

            If (udpSender = True) Then

                ' Send the requested number of packets to the destination

                Console.WriteLine("Sending the requested number of packets to the destination...")

                For i = 0 To sendCount - 1

                    rc = udpSocket.Send(sendBuffer, sendBuffer.Length)

                    Console.WriteLine("Sent {0} bytes to {1}", rc, destAddress.ToString())

                Next

                ' Send a few zero length datagrams to indicate to the receive to exit. Put a short

                '    sleep between them since UDP is unreliable and zero byte datagrams are really

                '    fast (and the local stack can actually drop datagrams before they even make it

                '    onto the wire).

                Console.WriteLine("Do some sleeping, Sleep(250)...")

                For i = 0 To 2

                    rc = udpSocket.Send(sendBuffer, 0)

                    System.Threading.Thread.Sleep(250)

                Next

            Else

                Dim senderEndPoint As IPEndPoint = New IPEndPoint(localAddress, 0)



                ' Receive datagrams in a loop until a zero byte datagram is received.

                '    Note the difference with the UdpClient in that the source address

                '    is simply an IPEndPoint that doesn't have to be cast to and EndPoint

                '    object as is the case with the Socket class.

                Console.WriteLine("Receiving datagrams in a loop until a zero byte datagram is received...")

                While (True)

                    receiveBuffer = udpSocket.Receive(senderEndPoint)

                    Console.WriteLine("Read {0} bytes from {1}", receiveBuffer.Length, senderEndPoint.ToString())

                    If (receiveBuffer.Length = 0) Then

                        GoTo AfterWhileLoop

                    End If

                End While

AfterWhileLoop:

            End If

        Catch err As SocketException

            Console.WriteLine("Socket error occurred: {0}", err.Message)

            Console.WriteLine("Stack: {0}", err.StackTrace)

        Finally

            If (Not IsNothing(udpSocket)) Then

                ' Clean things up by dropping any multicast groups we joined

                Console.WriteLine("Cleaning things up by dropping any multicast groups we joined...")

                For i = 0 To multicastGroups.Count - 1

                    If (localAddress.AddressFamily = AddressFamily.InterNetwork) Then

                        udpSocket.DropMulticastGroup(CType(multicastGroups(i), IPAddress))

                    ElseIf (localAddress.AddressFamily = AddressFamily.InterNetworkV6) Then

                        ' IPv6 multicast groups should be specified with the scope id when passed

                        '    on the command line

                        udpSocket.DropMulticastGroup( _

                            CType(multicastGroups(i), IPAddress), _

                            (CType(multicastGroups(i), IPAddress)).ScopeId _

                            )

                    End If

                Next

                ' Free up the underlying network resources

                Console.WriteLine("Freeing up the underlying network resources...")

                udpSocket.Close()

            End If

        End Try

    End Sub









We need to change the DLL to EXE type program so that we can run it in console mode. Select the project folder > Right click mouse > Select Properties context menu.



VB .NET UDP Client and Server Program Example - invoking the project's property page



In order to test the program, change the Application type: to Console Application and the Startup object: to Sub Main.



VB .NET UDP Client and Server Program Example - changing the Application type: to Console Application and the Startup object: to Main() subroutine to test the program



Next, build the project and make sure there is no error that can be seen in the Output window at the bottom of the VS IDE if any.



VB .NET UDP Client and Server Program Example - building the project



Then, run the project. Any error will be thrown by the exception handlers.



VB .NET UDP Client and Server Program Example - running the project

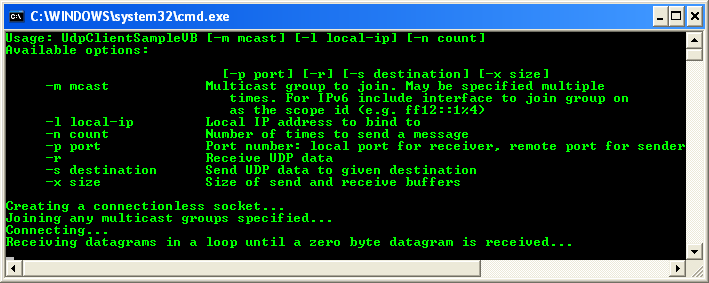

The following is the sample output.



VB .NET UDP Client and Server Program Example - a sample output in action



The following is the output sample when we run it as sender at the command prompt.



VB .NET UDP Client and Server Program Example - the output sample when we run it as sender at the command prompt

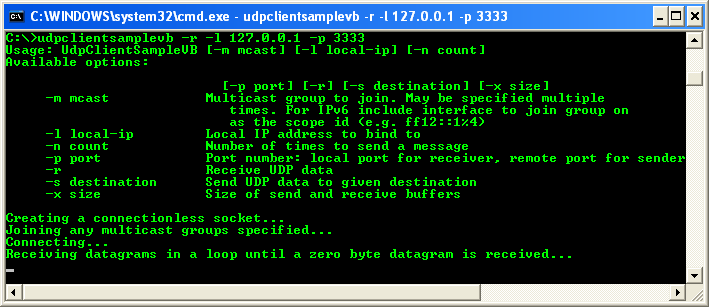

The following are the output sample when we run it as receiver at the command prompt.



VB .NET UDP Client and Server Program Example - the output sample when we run it as receiver at the command prompt



Running both as a receiver and a sender. Firstly run the program as a receiver from the root.



VB .NET UDP Client and Server Program Example - running the UDP program as receiver to test the sender



Then, run the same program as a sender from C:\Temp folder.



VB .NET UDP Client and Server Program Example - running the UDP program as sender from other location in the same host sending some data to the receiver

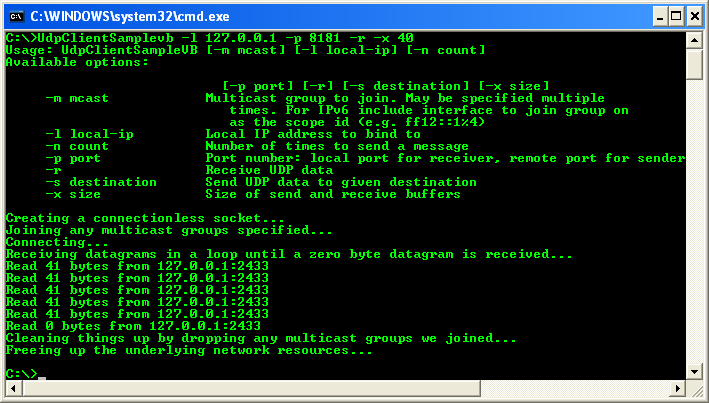

The following screenshot shows the UDP as a receiver when the communication was completed.



VB .NET UDP Client and Server Program Example - the UDP receiver program screen when the communication was completed



Code Access Security



The Socket class requires the SocketPermission.Accept permission to create a listening socket, and the SocketPermission.Connect privilege is required to connect a remote socket. These permissions apply to all instances of the Socket class, including TCP and UDP.

Code access security defines a security policy that grants different privileges based on the zone in which the application is running. There are three zones: My Computer, Local Intranet, and Internet. The My Computer zone defines any application run from the local computer, and Local Intranet consists of applications run from network shares residing on the Local Area Network (LAN). The Internet zone is the network beyond the LAN, such as a Web server on the Internet.

In version 1.1 of the .NET Framework, both the SocketPermission.Accept and SocketPermission.Connect permissions are granted only to applications run in the My Computer zone. Code executed from either of the other two zones will result in a System.Security.SecurityException being thrown.

As an experiment, create a network share on your local computer with the SimpleServer.exe program example is running. Map a driver letter to that share, and execute the sample from the mapped drive. An exception will be thrown. Of course, the default policy might be changed to allow this connection.
