Chapter 10 Part 14:

HTTP with .NET





What do we have in this chapter 10 Part 14?

  1. VB .NET Service Point Program Example





VB .NET Service Point Program Example



Create a new class library project and you might want to use ServicePointVB as the project and solution names.



VB .NET Service Point Program Example - creating a new class library project in VS 2008 IDE

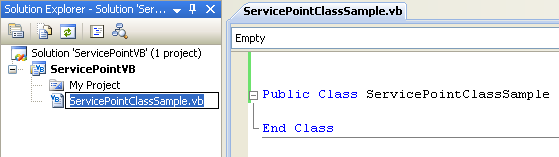

Rename the source file to ServicePointClassSample to reflect the application that we are going to develop. The default given class name will be automatically renamed to the same name.



VB .NET Service Point Program Example - renaming the source file automatically renaming the class name



Add/edit the code. We have two classes that include the Main() subroutine.



Imports System

Imports System.Net

Imports System.Collections

Imports System.Threading

Imports System.IO



' <summary>

' Maintains context information for each HTTP request

' </summary>

Public Class HttpState

    Public httpRequest As HttpWebRequest

    Public httpResponse As HttpWebResponse

    Public httpResponseStream As Stream

    Public uriResource As Uri

    Public readBuffer() As Byte

    Public doneEvent As ManualResetEvent

    Public bytesReceived As Integer



    Public Const DefaultReadBufferLength As Integer = 4096



    ' <summary>

    ' Constructor for initializing HttpState object

    ' </summary>

    ' <param name="resource">URI to retrieve</param>

    ' <param name="done">Event to signal when done</param>

    Public Sub New(ByVal resource As Uri, ByVal done As ManualResetEvent)

        httpRequest = Nothing

        httpResponse = Nothing

        uriResource = resource

        ReDim readBuffer(DefaultReadBufferLength)

        doneEvent = done

        bytesReceived = 0

    End Sub

End Class



' <summary>

' Contains the ServicePoint sample

' </summary>

Public Class ServicePointClassSample

    ' <summary>

    ' Displays usage information

    ' </summary>

    Shared Sub usage()

        Console.WriteLine("Executable_file_name [-u URI] [-p proxy] [-l count] [-s count]")

        Console.WriteLine("Available options:")

        Console.WriteLine("     -u URI      URI resource to retrieve")

        Console.WriteLine("     -p proxy    Proxy server to use")

        Console.WriteLine("     -l count    Maximum number of concurrent connections")

        Console.WriteLine("     -s count    Maximum number of ServicePoint instances")

        Console.WriteLine()

    End Sub



    ' <summary>

    ' Asynchronous delegate for read operation on the HTTP stream.

    ' </summary>

    ' <param name="ar">Asynchronous context information for operation</param>

    Shared Sub HttpStreamReadCallback(ByVal ar As IAsyncResult)

        Dim httpInfo As HttpState = CType(ar.AsyncState, HttpState)



        Try

            Dim percent As Long

            Dim count As Integer = httpInfo.httpResponseStream.EndRead(ar)



            httpInfo.bytesReceived += count

            percent = (httpInfo.bytesReceived * 100) / httpInfo.httpResponse.ContentLength

            Console.WriteLine("{0}: read {1} bytes: {2}%", httpInfo.uriResource.AbsoluteUri.ToString(), count, percent)



            If (count > 0) Then

                PostStreamRead(httpInfo)

            Else

                httpInfo.httpResponseStream.Close()

                httpInfo.httpResponseStream = Nothing

                httpInfo.httpResponse.Close()

                httpInfo.httpResponse = Nothing

                httpInfo.doneEvent.Set()

            End If

        Catch ex As Exception

            Console.WriteLine("Exception occurred: {0}", ex.Message)

            If (Not IsNothing(httpInfo.httpResponseStream)) Then

                httpInfo.httpResponseStream.Close()

            End If

            If (Not IsNothing(httpInfo.httpResponse)) Then

                httpInfo.httpResponse.Close()

            End If

            httpInfo.doneEvent.Set()

        End Try

    End Sub



    ' <summary>

    ' Post as an asynchronous receive operation on the HTTP stream.

    ' </summary>

    ' <param name="httpInfo">Context information for HTTP request</param>

    Shared Sub PostStreamRead(ByVal httpInfo As HttpState)

        Dim asyncStreamRead As IAsyncResult = httpInfo.httpResponseStream.BeginRead( _

            httpInfo.readBuffer, _

            0, _

            httpInfo.readBuffer.Length, _

            New AsyncCallback(AddressOf HttpStreamReadCallback), _

            httpInfo _

            )

    End Sub



    ' <summary>

    ' Asynchronous delegate for the HTTP response.

    ' </summary>

    ' <param name="ar">Asynchronous context information</param>

    Shared Sub HttpResponseCallback(ByVal ar As IAsyncResult)

        Dim httpInfo As HttpState = CType(ar.AsyncState, HttpState)



        Try

            httpInfo.httpResponse = CType(httpInfo.httpRequest.EndGetResponse(ar), HttpWebResponse)

            httpInfo.httpResponseStream = httpInfo.httpResponse.GetResponseStream()

            PostStreamRead(httpInfo)

        Catch wex As WebException

            Console.WriteLine("Exception occurred: {0}", wex.Message)

            Console.WriteLine(wex.StackTrace)

            httpInfo.doneEvent.Set()

        End Try

    End Sub



    ' <summary>

    ' Retrieves the given resource

    ' </summary>

    ' <param name="uriResource">URI to retrieve</param>

    ' <param name="doneEvent">Event to signal when done</param>

    Shared Sub GetUriResource(ByVal uriResource As Uri, ByVal doneEvent As ManualResetEvent)

        Dim httpInfo As HttpState = New HttpState(uriResource, doneEvent)



        Try

            Console.WriteLine("Issuing an async GET request for: {0}", uriResource.ToString())

            httpInfo.httpRequest = CType(WebRequest.Create(uriResource.AbsoluteUri), HttpWebRequest)

            httpInfo.httpRequest.BeginGetResponse(New AsyncCallback(AddressOf HttpResponseCallback), httpInfo)

            Console.WriteLine("Already POSTED!")

        Catch wex As WebException

            Console.WriteLine("GetUriResource() exception occurred: {0}", wex.Message)

            doneEvent.Set()

        End Try

    End Sub



    ' <summary>

    ' Main application which parses the command line and issues the HTTP request.

    ' </summary>

    ' <param name="args">Command line arguments</param>

    Shared Sub Main()

        Dim uriList As ArrayList = New ArrayList()

        Dim httpProxy As IWebProxy = WebRequest.DefaultWebProxy

        Dim connectionLimit As Integer = 2

        Dim servicePointLimit As Integer = 1

        Dim i As Integer



        ' Parse the command line

        Dim args As String() = Environment.GetCommandLineArgs()



        usage()



        For i = 1 To args.GetUpperBound(0)

            Try

                Dim CurArg() As Char = args(i).ToCharArray(0, args(i).Length)

                If (CurArg(0) = "-") Or (CurArg(0) = "/") Then

                    Select Case Char.ToLower(CurArg(1), System.Globalization.CultureInfo.CurrentCulture)

                        Case "u"

                            ' URI to download (get)

                            i = i + 1

                            uriList.Add(New Uri(args(i)))

                            Exit Select

                        Case "p"

                            ' Name of proxy server to use

                            i = i + 1

                            httpProxy = New WebProxy(args(i))

                            Exit Select

                        Case "l"

                            ' Number of connections limited to service point manager

                            i = i + 1

                            connectionLimit = System.Convert.ToInt32(args(i))

                            Exit Select

                        Case "s"

                            ' Service point limit

                            i = i + 1

                            servicePointLimit = System.Convert.ToInt32(args(i))

                            Exit Select

                        Case Else

                            usage()

                            Exit Sub

                    End Select

                End If

            Catch e As Exception

                usage()

                Exit Sub

            End Try

        Next



        Try

            Dim requestEvents(uriList.Count) As ManualResetEvent



            ' Setup the ServicePointManager first

            Console.WriteLine("Setting up the ServicePointManager...")

            WebRequest.DefaultWebProxy = httpProxy

            ServicePointManager.MaxServicePoints = servicePointLimit

            ServicePointManager.DefaultConnectionLimit = connectionLimit

            ServicePointManager.MaxServicePointIdleTime = 30000 ' 30 seconds

            Console.WriteLine("Uri count: {0}", uriList.Count)



            For i = 0 To uriList.Count - 1

                Console.WriteLine("Uri: {0}", (CType(uriList(i), Uri)).ToString())



                Dim baseUri As String = "http://" + (CType(uriList(i), Uri)).Host + "/"



                Console.WriteLine("Base URI: {0}", baseUri)



                Dim sp As System.Net.ServicePoint = ServicePointManager.FindServicePoint(CType(uriList(i), Uri), httpProxy)



                requestEvents(i) = New ManualResetEvent(False)

                GetUriResource(CType(uriList(i), Uri), requestEvents(i))

            Next

            Console.WriteLine("Waiting...")

            ManualResetEvent.WaitAll(requestEvents)

            Console.WriteLine("Considered done...")

        Catch ex As Exception

            Console.WriteLine("Main() exception occurred: {0}", ex.Message)

        Finally

            Console.WriteLine("Something wrong here. What wrong? Find it yourself...")

        End Try

    End Sub

End Class

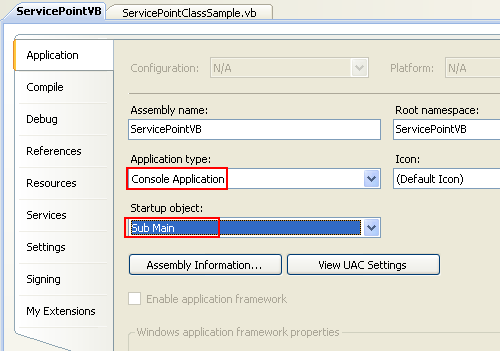

To test this program we need to change the DLL to application (EXE) type program so that we can run it from the console. To complete this task, select the project folder > Right click mouse > Select Properties context menu. Change the Application type: to Console Application and the Startup object: to Sub Main.



VB .NET Service Point Program Example - changing the Application type: to Console Application and the Startup object: to Main() subroutine

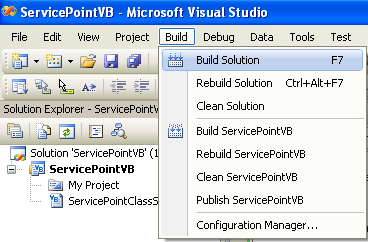

Build the project.



VB .NET Service Point Program Example - building the project

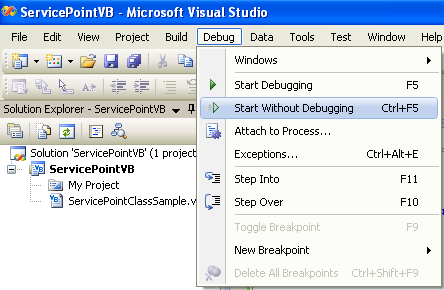

Run the project.



VB .NET Service Point Program Example - running the project



The following is the output sample.



VB .NET Service Point Program Example - a sample output without arguments

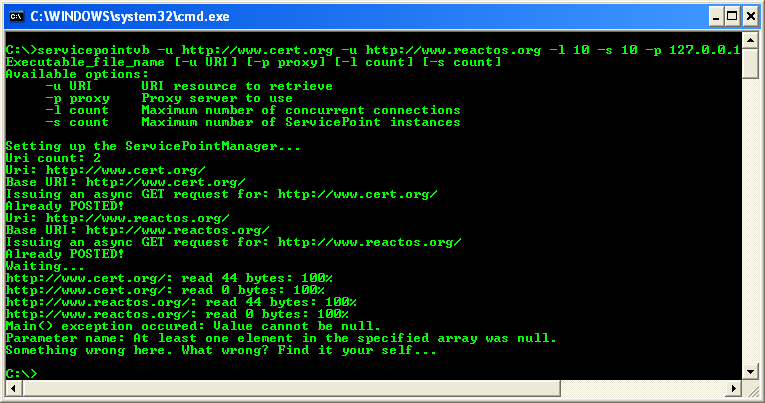

The following are the output samples when run from the command prompt with two and one URIs respectively. However an exception was thrown here and it is left for you to rectify it as an exercise!



VB .NET Service Point Program Example - a sample output in action with argument values supplied

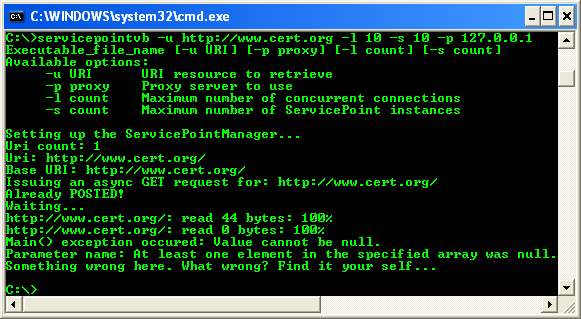

VB .NET Service Point Program Example - another sample output
