Chapter 14 Part 3:

Network Performance and Scalability





What do we have in this chapter 14 Part 3?

  1. Build and Run the C# Project

  2. A Simple VB .NET Web Class Performance Measurement Program Example

Build and Run



Build and run the project. Make sure there is no error else you have to resolve the error.



A Simple C# Web Class Performance Measurement Program Example: building the project

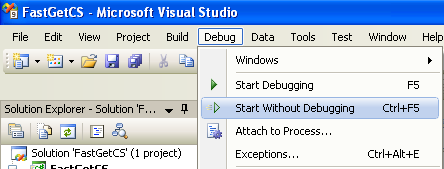

A Simple C# Web Class Performance Measurement Program Example: running the project without debugging



The following screenshot shows a sample console output when run from Visual Studio without debugging. This program needs to run at the command prompt.



A Simple C# Web Class Performance Measurement Program Example: a sample console output



Launch the command prompt. Run the program with some sample options. The following sample output uses:



%\FastGetCS\bin\Debug>fastgetcs -a -c 10 -n 10 -u http://www.reactos.org/en/dev.html



As the arguments and the following screenshot shows the console output.



A Simple C# Web Class Performance Measurement Program Example: a sample console output when run at the command prompt



Use different arguments mainly the –n and –c options combination for 'performance comparison'. A complete output for the previous sample run is given below.

C:\networkdotnetproject\FastGetCS\FastGetCS\bin\Debug>fastgetcs -a -c 10 -n 10 -u http://www.reactos.org/en/dev.html

In FastAsyncGetCS.Main()

Counting start in ms: 6726437

In FastAsyncGetCS.GetPages()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

[trimmed]

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

 [trimmed]

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

 [trimmed]

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ResponseCallback()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

[trimmed]

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

In FastAsyncGetCS.ReadCallBack()

Counting end in ms: 6803375

Total count in ms: 76938

Calculating the total KB/s...

Then total count in seconds 76.938 seconds.

Number of request: 0.1299748 requests per second.

It is 1 KB per second.



C:\networkdotnetproject\FastGetCS\FastGetCS\bin\Debug>

A Simple VB .NET Web Class Performance Measurement Program Example



Create a new VB .NET console application project. You may want to use the solution and project names as shown in the following screenshot.



A Simple VB .NET Web Class Performance Measurement Program Example: creating new VB .NET console application project



Add/edit the code as given below.











' This sample measures HTTP GET performance through the HttpWebRequest class. Various

' options can be configured such as the connectionlimit, the total number of requests,

' Nagling, unsafe connection sharing, etc. The sample posts the requested number of

' asynchronous requests. When one completes, the response is retrieved, and an

' asynchronous stream receive is posted. The stream receive is reposted until the entire

' data stream has been read.

'

' Usage:

'      fastgetvb -c [int] -n [int] -u [URI] -p

'      -a              Allow unsafe authenticated connections

'      -c  int         Number of concurrent requests allowed

'      -d              Disable Nagle algorithm

'      -n  int         Total number of connections to make

'      -u  URI         URI resource to download

'      -p              Enable pipelining

'      -un string      User name

'      -up string      Password

'      -ud domain      Domain

'

' Sample usage:

'      fastgetvb -c 10 -n 10000 -u http://foo.com/default.html

'

'      fastgetvb -c 10 -n 10000 -u http://foo.com/default.html

'



Imports System

Imports System.IO

Imports System.Net

Imports System.Text

Imports System.Threading

Imports System.Globalization



Module Module1



    ' <summary>

    ' Simple client designed to max out the network

    ' using HttpWebRequest.

    ' </summary>

    Class FastAsyncGet



        Public Shared uriName As Uri = Nothing

        Public Shared allDone As ManualResetEvent = Nothing

        Public Shared numRequests As Integer = 10

        Public Shared Test As Integer = 1

        Public Shared numConnections As Integer = 2

        Public Shared numRequestsCompleted As Integer = 0

        Public Shared readBuffer() As Byte = Nothing

        Public Shared totalBytesReceived As Long = 0

        Public Shared pipeliningEnabled As Boolean = False

        Public Shared useNagle As Boolean = True

        Public Shared unsafeAuthentication As Boolean = False

        Public Shared userInfo As NetworkCredential = Nothing



        ' <summary>

        ' Displays usage information.

        ' </summary>

        Shared Sub usage()

            Console.WriteLine("usage: fastgetvb -c [int] -n [int] -u [URI] -p")

            Console.WriteLine(" -a              Allow unsafe authenticated connections")

            Console.WriteLine(" -c  int         Number of concurrent requests allowed")

            Console.WriteLine(" -d              Disable Nagle algorithm")

            Console.WriteLine(" -n  int         Total number of connections to make")

            Console.WriteLine(" -u  URI         URI resource to download")

            Console.WriteLine(" -p              Enable pipelining")

            Console.WriteLine(" -un string      User name")

            Console.WriteLine(" -up string      Password")

            Console.WriteLine(" -ud domain      Domain")

            Console.WriteLine("")

            Console.WriteLine("Sample: fastgetvb -a -c 10 -n 10000 -u http://foo.com/default.html")

        End Sub



        ' <summary>

        ' This is the main method which parses the command line and initiates the GET requests.

        ' It then waits for the 'allDone' method to be set at which point it calculates the performance

        ' statistics and displays them to the console.

        ' </summary>

        ' <param name="args">Command line parameters</param>

        Shared Sub Main()

            Dim userName As String = Nothing

            Dim passWord As String = Nothing

            Dim domain As String = Nothing



            Dim appArguments As String() = Environment.GetCommandLineArgs()

            Dim i As Integer



            For i = 1 To appArguments.GetUpperBound(0) - 1

                Try

                    Dim CurArg() As Char = appArguments(i).ToCharArray(0, appArguments(i).Length)



                    If (CurArg(0) = "-") Or (CurArg(0) = "/") Then



                        Select Case Char.ToLower(CurArg(1), Globalization.CultureInfo.CurrentCulture)



                            Case "a"

                                ' Allow unsafe authentication

                                unsafeAuthentication = True

                            Case "c"

                                ' How many concurrent requests to allow

                                ' i + 1 to fetch the argument else we just fetch the options/switches

                                ' numConnections = Convert.ToInt32(appArguments(i + 1)) -- IS OK!

                                ' http://www.codeproject.com/KB/cs/AgileWare_Convert_Int32.aspx

                                ' numConnections = Integer.Parse(appArguments(i)) ' -- FAIL!

                                Test = Int32.TryParse(appArguments(i + 1), i + 1)

                                Console.WriteLine("appArguments(i+1) is: " + appArguments(i + 1))

                                ' Test = Integer.TryParse(appArguments(i), i) -- FAIL!



                                If Test = True Then

                                    numConnections = i + 1

                                Else

                                    Console.WriteLine("Cannot convert the bastard lor!")

                                    usage()

                                    Exit Sub

                                End If

                                i = i + 1



                            Case "d"

                                ' Disable Nagle algorithm

                                useNagle = False

                            Case "n"

                                ' How many client connections to establish to server

                                numRequests = Convert.ToInt32(appArguments(i + 1))

                                i = i + 1

                            Case "p"

                                ' Enable pipelining

                                pipeliningEnabled = True

                            Case "u"

                                If (appArguments(i).Length = 2) Then

                                    ' URI to retrieve

                                    uriName = New Uri(appArguments(i + 1))

                                    i = i + 1

                                Else

                                    Select Case Char.ToLower(CurArg(2))

                                        Case "n"

                                            ' User name

                                            i = i + 1

                                            userName = appArguments(i + 1)

                                        Case "p"

                                            ' Password

                                            i = i + 1

                                            passWord = appArguments(i + 1)

                                        Case "d"

                                            ' Domain

                                            i = i + 1

                                            domain = appArguments(i + 1)

                                        Case Else

                                            usage()

                                            Exit Sub

                                    End Select

                                End If

                            Case Else

                                usage()

                        End Select

                    End If

                Catch err As Exception

                    Console.WriteLine("Error lol! " + err.ToString())

                    usage()

                    Exit Sub

                End Try

            Next



            If (uriName Is Nothing) Then

                usage()

                Exit Sub

            End If



            If ((Not userName Is Nothing) Or (Not passWord Is Nothing) Or (Not domain Is Nothing)) Then

                userInfo = New NetworkCredential(userName, passWord, domain)

            End If



            Try

                Dim startTime As Double = 0.0

                Dim endTime As Double = 0.0

                Dim totalTime As Double = 0.0



                ReDim readBuffer(1200)

                allDone = New ManualResetEvent(False)

                startTime = Environment.TickCount

                ' Console.WriteLine("The start counting in ms is: " + startTime) --- FAIL!

                Console.WriteLine("The start counting in ms is: {0}.", startTime)

                Console.WriteLine("Start getting the page...")



                GetPages()

                allDone.WaitOne()

                endTime = Environment.TickCount

                Console.WriteLine("The end counting in ms is: {0}.", endTime)

                totalTime = endTime - startTime

                Console.WriteLine("The total time elapsed in ms is: {0}.", totalTime)

                Dim totalKBytes As Long = CLng((totalBytesReceived / 1000) / (totalTime / 1000))

                Console.WriteLine("The total KB in the elapsed time (second) is: {0}.", totalKBytes)

                Console.WriteLine("The elapsed time in seconds is: {0} seconds.", totalTime / 1000)

                Console.WriteLine("The number of request in elapsed time is: {0} requests per second.", numRequests / (totalTime / 1000))

                ' Gets a NumberFormatInfo associated with the en-US culture.

                Dim nfi As NumberFormatInfo = New CultureInfo("en-US", False).NumberFormat

                nfi.NumberDecimalDigits = 0

                Console.WriteLine("It is " + totalKBytes.ToString("N", nfi) + " KB per second lor!")

            Catch ex As Exception

                Console.WriteLine(ex.ToString())

                allDone.Set()

            End Try

        End Sub



        '/ <summary>

        '/ Retrieve the given URI the requested number of times. This method initiates an asynchronous

        '/ HTTP GET request for the URI.

        '/ </summary>

        Shared Sub GetPages()

            Dim i As Integer



            Console.WriteLine("In GetPages()")

            For i = 0 To numRequests - 1

                Dim request As HttpWebRequest = WebRequest.Create(uriName)



                request.ServicePoint.ConnectionLimit = numConnections

                request.ServicePoint.UseNagleAlgorithm = useNagle

                request.UnsafeAuthenticatedConnectionSharing = unsafeAuthentication

                request.Pipelined = pipeliningEnabled

                request.Credentials = userInfo

                If (Not userInfo Is Nothing) Then

                    request.ConnectionGroupName = userInfo.UserName

                End If

                request.BeginGetResponse(AddressOf ResponseCallback, request)

            Next

        End Sub



        ' <summary>

        ' This is the asynchronous callback invoked when the HTTP GET request completes. It retrieves

        ' the HTTP response object, obtains the data stream, and posts an asynchronous stream read

        ' to retrieve the data. Note that all receives for all requests use the same data buffer since

        ' we don't care about the data -- we just want to measure performance.

        ' </summary>

        ' <param name="result">Asynchronous context result for the operation</param>

        Shared Sub ResponseCallback(ByVal result As IAsyncResult)

            Dim req As HttpWebRequest = result.AsyncState



            Console.WriteLine("ResponseCallback()")



            Try

                ' Retrieve the response and post a stream receive

                Dim response As WebResponse = req.EndGetResponse(result)

                Dim responseStream As Stream = response.GetResponseStream()

                responseStream.BeginRead(readBuffer, 0, readBuffer.Length, AddressOf ReadCallBack, responseStream)

            Catch ex As Exception

                Console.WriteLine("Exception thrown in ResponseCallback... " + ex.ToString())

                req.Abort()

                Interlocked.Increment(numRequestsCompleted)

            End Try

        End Sub



        '/ <summary>

        '/ This is the asynchronous callback for the asynchronous stream receive operation posted after the

        '/ HTTP response is obtained from a request. This method checks the number of bytes returned. If it is

        '/ non-zero, another receive is posted as there could be more data pending. If zero is returned, we have

        '/ read the entire data stream so we can close it.

        '/ </summary>

        '/ <param name="asyncResult">Asynchronous context result for the operation</param>

        Shared Sub ReadCallBack(ByVal asyncResult As IAsyncResult)

            Dim responseStream As Stream = asyncResult.AsyncState

            Dim read As Integer = responseStream.EndRead(asyncResult)



            Console.WriteLine("ReadCallBack()")



            If (read > 0) Then

                ' Possibly more data pending...post another receive

                totalBytesReceived = totalBytesReceived + read

                responseStream.BeginRead(readBuffer, 0, readBuffer.Length, AddressOf ReadCallBack, responseStream)

            Else

                ' Reached the end of the stream so close it up

                responseStream.Close()

                Interlocked.Increment(numRequestsCompleted)



                If (numRequestsCompleted >= numRequests) Then

                    allDone.Set()

                End If

            End If

        End Sub

    End Class

End Module








< Windows OS Network Resources | Main | Enabling the Visual Studio Editor Line Numbers >
