Chapter 4 Part 3:

Serialization





What do we have in this chapter 4 Part 3?

  1. C# Binary SOAP Program Example





C# Binary SOAP Program Example

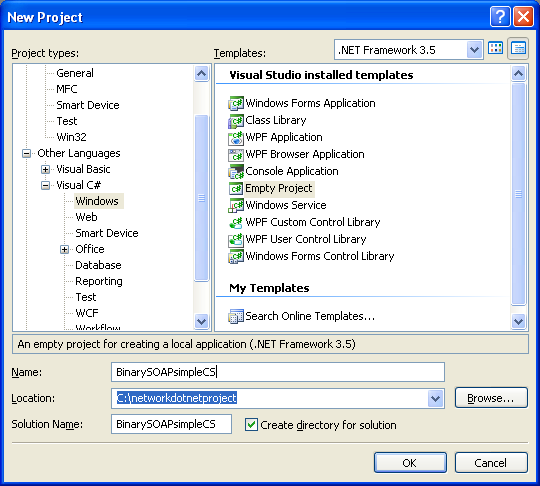

Create an empty Visual C# project. You can use the project and solution name as shown in the following Figure.



C# Binary SOAP Program Example - a new empty project creation



Add a class named MyBasicData.

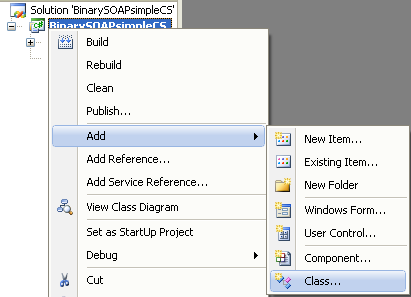

C# Binary SOAP Program Example - adding a class in the existing project

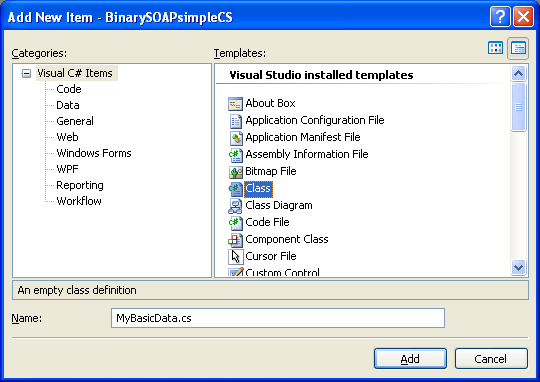

C# Binary SOAP Program Example - add new class to the existing project



Add the following codes.



// This sample illustrates the different binary and SOAP serialization methods. This

// sample illustrates using the IFormatter interface along with the BinaryFormatter

// and the SoapFormatter (obsolete) classes. Additionally, this sample illustrates simple

// serialization as well as selective and custom serialization. The sample illustrates

// both serialization and deserialization from a file. Note however, a serialized

// file can only be deserialized using the same flags. That is if the custom flag

// "/custom" was specified during serialization, it must also be present when

// deserialized.

//

// Usage:

//      usage: executable_file_name [/file outfile.bin] [/soap | /binary] [/deserialize | /serialize]

//                        [/simple | /selective | /custom]

//      /file    filename        Filename to serialize to or deserialize from [default = binary.bin]

//      /soap                    Serialize data to SOAP format

//      /binary                  Serialize data to binary format [default]

//      /deserialize             Deserialize data from file

//      /serialize               Serialize data to file [default]

//      /simple                  Serialize a simple data structure

//      /selective               Serialize a selective data structure

//      /custom                  Serialize a custom data structure

//

// Sample usage:

//      Basic binary serialization:

//          executable_file_name /binary /serialize /simple /file simple.bin

//      Basic binary deserialization:

//          executable_file_name /binary /deserialize /simple /file simple.bin

//      Custom SOAP serialization:

//          executable_file_name /soap /serialize /selective /file selective.soap

//      Custom SOAP deserialization:

//          executable_file_name /soap /deserialize /selective /file selective.soap



using System;

using System.Collections.Generic;

using System.Text;

using System.IO;

using System.Runtime.Serialization;

using System.Runtime.Serialization.Formatters.Binary;

// using System.Runtime.Serialization.Formatters.Soap; - obsolete before 3.5

// included in the previous directive

using System.Net;

using System.Net.Sockets;



namespace BinarySOAPsimpleCS

{

    /// <summary>

    /// This is a simple class to illustrate binary serialization. It contains both

    /// public and private fields.

    /// </summary>

    [Serializable]

    class MyBasicData

    {

        public int IntField1;

        public string StringField1;

        private int IntField2;



        /// <summary>

        /// Constructor for MyBasicData that initializes member variables.

        /// </summary>

        public MyBasicData()

        {

            IntField1 = 1066;

            StringField1 = "Basic Data Info";

            IntField2 = 1492;

        }



        /// <summary>

        /// Simple routine to display the values of each member variable.

        /// </summary>

        public void Print()

        {

            Console.WriteLine("MyBasicData.IntField1    = {0}", IntField1);

            Console.WriteLine("MyBasicData.StringField1 = {0}", StringField1);

            Console.WriteLine("MyBasicData.IntField2    = {0}", IntField2);

        }

    }



    /// <summary>

    /// This class shows how to set the NonSerialized attribute on a class property

    /// such that it will not appear in the serialized output.

    /// </summary>

    [Serializable]

    class MySelectiveData

    {

        public int UserId;

        public string UserName;

        [NonSerialized]

        private string Password;



        /// <summary>

        /// Constructor for MySelectiveData to initialize member variables.

        /// </summary>

        public MySelectiveData()

        {

            UserId = 100;

            UserName = "Joe User";

            Password = "DefaultPassword";

        }



        /// <summary>

        /// Simple routine to display the contents of the MySelectiveData class

        /// </summary>

        public void Print()

        {

            Console.WriteLine("MySelectiveData.UserId   = {0}", UserId);

            Console.WriteLine("MySelectiveData.UserName = {0}", UserName);

            Console.WriteLine("MySelectiveData.Password = {0}", Password);

        }



        /// <summary>

        /// Method for setting the current password.

        /// </summary>

        public void SetPassword(string newpassword)

        {

            Password = newpassword;

        }

    }



    /// <summary>

    /// This class shows how to customize the binary serialization process by implementing

    /// the ISerializable interface.

    /// </summary>

    [Serializable]

    class MyCustomData : ISerializable

    {

        public int IntField1;

        public string StringField1;

        [NonSerialized]

        public IPAddress LocalAddress;



        /// <summary>

        /// Constructor for MyCustomData that initialized the member variables.

        /// </summary>

        public MyCustomData()

        {

            IntField1 = 1069;

            StringField1 = "ISerializable custom serialization";

            LocalAddress = IPAddress.Parse("1.2.3.4");

        }



        /// <summary>

        /// Simple print routine for displaying the member fields of the MyCustomData class.

        /// </summary>

        public void Print()

        {

            Console.WriteLine("MyCustomData.IntField1    = {0}", IntField1);

            Console.WriteLine("MyCustomData.StringField1 = {0}", StringField1);

            Console.WriteLine("MyCustomData.LocalAddress = {0}", LocalAddress.ToString());

        }



        /// <summary>

        /// Method called when the object is serialized. Each member property to be

        /// serialized is assigned as string key name. This will be used in the custom

        /// constructor to retrieve the value for each property when deserialization takes place

        /// </summary>

        /// <param name="info">

        /// Contains serialization context information for each property to be serialized.

        /// </param>

        /// <param name="context">

        /// Describes the source and destination of a given serialized stream

        /// </param>

        public virtual void GetObjectData(SerializationInfo info, StreamingContext context)

        {

            info.AddValue("IntField1", IntField1);

            info.AddValue("whatever", StringField1);

        }



        /// <summary>

        /// Custom constructor that is called when the object is deserialized such that

        /// it can retrieve the values for properties by using the keys assigned to each.

        /// It can also initialize other properties as desired.

        /// </summary>

        /// <param name="info"></param>

        /// <param name="context"></param>

        protected MyCustomData(SerializationInfo info, StreamingContext context)

        {

            IPHostEntry ipHost = null;



            IntField1 = info.GetInt32("IntField1");

            StringField1 = info.GetString("whatever");



            // Since we don't retrieve the LocalAddress property (and since it wasn't

            // serialized to begin with, we find the local IP address and initialize it to that.

            try

            {

                ipHost = Dns.GetHostEntry("127.0.0.1");

                if (ipHost.AddressList.Length > 0)

                {

                    LocalAddress = ipHost.AddressList[0];

                }

                else

                {

                    LocalAddress = IPAddress.Loopback;

                }

            }

            catch (System.Net.Sockets.SocketException)

            {

                LocalAddress = IPAddress.Loopback;

            }

        }

    }



    /// <summary>

    /// Simple enumeration for the different types of serialization supported.

    /// </summary>

    enum SerializeType

    {

        useBinary,

        useSoap

    }



    /// <summary>

    /// Simple enumeration for the operation to perform: deserialization or serialization.

    /// </summary>

    enum SerializeOperation

    {

        opRead,

        opWrite

    }



    /// <summary>

    /// Simple enumeration for the class type to serialize or deserialize.

    /// </summary>

    enum SerializeDataType

    {

        typeSimple,

        typeSelective,

        typeCustom

    }



    /// <summary>

    /// Main class that contains the the Main routine for this sample.

    /// </summary>

    class BinarySerialization

    {

        /// <summary>

        /// Displays usage information for this sample.

        /// </summary>

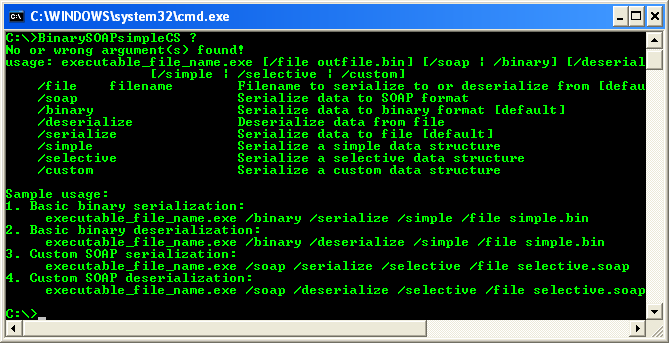

        static void usage()

        {

            Console.WriteLine("usage: executable_file_name.exe [/file outfile.bin] [/soap | /binary] [/deserialize | /serialize]");

            Console.WriteLine("                  [/simple | /selective | /custom]");

            Console.WriteLine("    /file    filename        Filename to serialize to or deserialize from [default = binary.bin]");

            Console.WriteLine("    /soap                    Serialize data to SOAP format");

            Console.WriteLine("    /binary                  Serialize data to binary format [default]");

            Console.WriteLine("    /deserialize             Deserialize data from file");

            Console.WriteLine("    /serialize               Serialize data to file [default]");

            Console.WriteLine("    /simple                  Serialize a simple data structure");

            Console.WriteLine("    /selective               Serialize a selective data structure");

            Console.WriteLine("    /custom                  Serialize a custom data structure");

            Console.WriteLine();

            Console.WriteLine("Sample usage:");

            Console.WriteLine("1. Basic binary serialization:");

            Console.WriteLine("     executable_file_name.exe /binary /serialize /simple /file simple.bin");

            Console.WriteLine("2. Basic binary deserialization:");

            Console.WriteLine("     executable_file_name.exe /binary /deserialize /simple /file simple.bin");

            Console.WriteLine("3. Custom SOAP serialization:");

            Console.WriteLine("     executable_file_name.exe /soap /serialize /selective /file selective.soap");

            Console.WriteLine("4. Custom SOAP deserialization:");

            Console.WriteLine("     executable_file_name.exe /soap /deserialize /selective /file selective.soap");

        }







        /// <summary>

        /// Main function which parses the command line, creates the data to

        /// serialize, creates the file stream, and either serializes or

        /// deserializes the data. If deserialization is chosen, the member

        /// fields of the deserialized class are printed to the console.

        /// </summary>

        /// <param name="args">Command line arguments passed to program.</param>

        static void Main(string[ ] args)

        {

            Stream fileStream;

            IFormatter myFormatter = null;

            string fileName = "binary.bin";

            SerializeType serializationType = SerializeType.useBinary;

            SerializeOperation serializeOp = SerializeOperation.opWrite;

            SerializeDataType dataType = SerializeDataType.typeSimple;



            // Parse the command line, 0 = first argument!

            for (int i = 0; i < args.Length; i++)

            {

                if (String.Compare(args[i], "/file", true) == 0)

                {

                    try

                    {

                        fileName = args[++i];

                    }

                    catch (System.IndexOutOfRangeException err)

                    {

                        Console.WriteLine("Please specify output filename!\n");

                        Console.WriteLine(err.Message);

                        usage();

                    }

                }

                else if (String.Compare(args[i], "/binary", true) == 0)

                {

                    serializationType = SerializeType.useBinary;

                }

                else if (String.Compare(args[i], "/soap", true) == 0)

                {

                    serializationType = SerializeType.useSoap;

                }

                else if (String.Compare(args[i], "/deserialize", true) == 0)

                {

                    serializeOp = SerializeOperation.opRead;

                }

                else if (String.Compare(args[i], "/serialize", true) == 0)

                {

                    serializeOp = SerializeOperation.opWrite;

                }

                else if (String.Compare(args[i], "/simple", true) == 0)

                {

                    dataType = SerializeDataType.typeSimple;

                }

                else if (String.Compare(args[i], "/selective", true) == 0)

                {

                    dataType = SerializeDataType.typeSelective;

                }

                else if (String.Compare(args[i], "/custom", true) == 0)

                {

                    dataType = SerializeDataType.typeCustom;

                }

                else

                {

                    Console.WriteLine("No or wrong argument(s) found!");

                    usage();

                    return;

                }

            }



            // Create the appropriate file stream - to write to or read from.

            if (serializeOp == SerializeOperation.opWrite)

            {

                fileStream = new FileStream(

                        fileName,

                        FileMode.Create,

                        FileAccess.Write,

                        FileShare.None

                        );

            }

            else

            {

                fileStream = new FileStream(

                        fileName,

                        FileMode.Open,

                        FileAccess.Read,

                        FileShare.None

                        );

            }



            // Create the formatter - binary or SOAP, this should be redundant...

            if ((serializationType == SerializeType.useBinary) || (serializationType == SerializeType.useSoap))

            {

                myFormatter = new BinaryFormatter();

            }



            // Perform the selected operation: read or write

            if (serializeOp == SerializeOperation.opWrite)

            {

                // Create an instance of the selected class and serialized it to the file stream

                if (dataType == SerializeDataType.typeSimple)

                {

                    MyBasicData basicData = null;



                    basicData = new MyBasicData();



                    // Set field to something other than the constructor default value

                    basicData.IntField1 = 999;



                    Console.WriteLine("Simple data being serialized:");

                    basicData.Print();



                    // Serialize the data to the stream

                    try

                    {

                        myFormatter.Serialize(fileStream, basicData);

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Simple serialization failed: " + err.Message);

                    }

                }

                else if (dataType == SerializeDataType.typeSelective)

                {

                    MySelectiveData selectiveData = null;

                    selectiveData = new MySelectiveData();

                    // Set field to something other than the constructor default value

                    selectiveData.SetPassword("abcd1234");

                    Console.WriteLine("Selective data being serialized:");

                    selectiveData.Print();



                    // Serialize the date to the stream

                    try

                    {

                        myFormatter.Serialize(fileStream, selectiveData);

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Selective serialization failed: " + err.Message);

                    }

                }

                else

                {

                    MyCustomData customData = null;

                    customData = new MyCustomData();

                    // Set field to something other than the constructor default value

                    customData.IntField1 = 888;

                    Console.WriteLine("Custom data being serialized:");

                    customData.Print();



                    try

                    {

                        myFormatter.Serialize(fileStream, customData);

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Custom serialization failed: " + err.Message);

                    }

                }

            }

            else

            {

                // Deserialize the selected class from the file stream

                if (dataType == SerializeDataType.typeSimple)

                {

                    MyBasicData basicData = null;



                    try

                    {

                        basicData = (MyBasicData)myFormatter.Deserialize(fileStream);

                        basicData.Print();

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Deserialization failed: " + err.Message);

                    }

                }

                else if (dataType == SerializeDataType.typeSelective)

                {

                    MySelectiveData selectiveData = null;



                    try

                    {

                        selectiveData = (MySelectiveData)myFormatter.Deserialize(fileStream);

                        selectiveData.Print();

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Deserialization failed: " + err.Message);

                    }

                }

                else

                {

                    MyCustomData customData = null;



                    try

                    {

                        customData = (MyCustomData)myFormatter.Deserialize(fileStream);

                        customData.Print();

                    }

                    catch (System.Runtime.Serialization.SerializationException err)

                    {

                        Console.WriteLine("Deserialization failed: " + err.Message);

                    }

                }

            }

            fileStream.Close();

        }

    }

}



Build and run the program. The following are sample outputs when run at the command prompt.



C# Binary SOAP Program Example - a sample output without any arguments

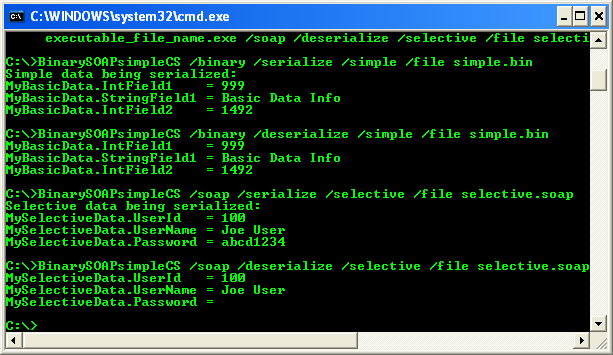

C# Binary SOAP Program Example - sample outputs with different argument values










< C++ Binary SOAP Program Example | Main | VB .NET Binary SOAP Program Example >
