Chapter 9 Part 4:

Server or Listening Sockets Programming





What do we have in this chapter 9 Part 4?

  1. C# Asynchronous Server Program Example





C# Asynchronous Server Program Example



Create a new console application project and you might want to use the solution name, AsyncTcpServerCS and project name, AsyncTcpServer as shown in the following Figure.



C# Asynchronous Server Program Example - creating a new console application project in Visual Studio 2008 IDE



Next, rename the source file to AsyncServer to reflect the application that we are going to develop.



C# Asynchronous Server Program Example - renaming the source file    to reflect the application to be developed



Add the following using directives.



using System;

using System.Net;

using System.Net.Sockets;

using System.Collections;

using System.Threading;

using AsyncPacketClass;



Next, add the reference to the AsyncPacketClass. Select project folder > Right click mouse > Select Add Reference context menu.



C# Asynchronous Server Program Example - invoking the Add Reference page using Add Reference context menu



Browse the AsyncPacketClass project folder.

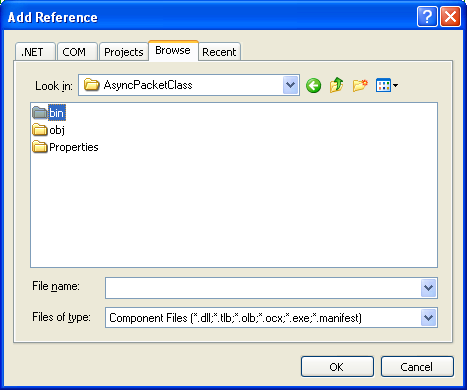

C# Asynchronous Server Program Example - browsing and finding the DLL file



Browse the DLL file, select the file and click OK.



C# Asynchronous Server Program Example - selecting the DLL file to be included in the existing project through a reference



You can see the reference to the class has been added under the References folder. To make sure the reference to the AsyncPacketClass class is functioning, you can build this project. There should be no error in the Output window.



C# Asynchronous Server Program Example - the included DLL file can be seen in the Solution Explorer under the References folder



When you double click the AsyncPacketClass sub folder, all the object in the class will be shown in the Object Browser as shown below.



C# Asynchronous Server Program Example - through the Object Browser we can explore all the object available in that those classes



Next, add the public access modifier for the class.



C# Asynchronous Server Program Example - adding the public access modifier to the class



Add the following usage() and the Main() methods codes which encapsulated in the AsyncServer class.









        /// <summary>

        /// Displays simple usage information

        /// </summary>

        static public void usage()

        {

            Console.WriteLine("Executable_file_name [-a count] [-l address] [-p port]");

            Console.WriteLine("Available options:");

            Console.WriteLine("  -a count     Number of simultaneous asynch Accepts (BeginAccept) allowed.");

            Console.WriteLine("  -l address   Local address to create a TCP");

            Console.WriteLine("               server on (can be specified multiple times.");

            Console.WriteLine("  -p port      Local port number each server listens on.");

            Console.WriteLine();

        }



/// <summary>

        /// This is the main program that parses the command line parameters and sets up each TCP

        /// listening socket by creating a TcpServer object to handle client connections to each

        /// listening endpoint. The TcpServer object creates a AcceptedConection object for each

        /// established connection which handles IO operations from each client.

        /// </summary>

        /// <param name="args"></param>

        static void Main(string[ ] args)

        {

            ArrayList       listenInterfaces = new ArrayList(), tcpServerList = new ArrayList();

            int             asyncAcceptLimit = 10, listenPort = 5150;



            // Parse the command line

            if (args.Length != 0)

            {

                for (int i = 0; i < args.Length; i++)

                {

                    try

                    {

                        if ((args[i][0] == '-') || (args[i][0] == '/'))

                        {

                            switch (Char.ToLower(args[i][1]))

                            {

                                case 'a':

                                    // How many asynchronous accept (BeginAccepts) allowed simultaneously

                                    asyncAcceptLimit = System.Convert.ToInt32(args[++i]);

                                    break;

                                case 'l':

                                    // Local interface(s) to bind to

                                    listenInterfaces.Add(IPAddress.Parse(args[++i]));

                                    break;

                                case 'p':

                                    // Port on which to listen

                                    listenPort = System.Convert.ToInt32(args[++i]);

                                    break;

                                default:

                                    usage();

                                    return;

                            }

                        }

                    }

                    catch

                    {

                        usage();

                        return;

                    }

                }

            }

            else

            {

                usage();

                return;

            }



        // Create an array of handles to signal when server sockets are finished

        Console.WriteLine("Creating an array of handles to signal when server sockets are finished...");

        WaitHandle [ ] serverWaitHandles = new WaitHandle [ listenInterfaces.Count ];

        // Create a TCP server socket for each local listen address passed to the application

        Console.WriteLine("Creating a TCP server socket for each local listen address passed to the application...");

        for(int i=0; i < listenInterfaces.Count ;i++ )

        {

            IPEndPoint  listenEndPoint;

            TcpServer   listenServer;



            try

            {

                listenEndPoint = new IPEndPoint( (IPAddress) listenInterfaces[i], listenPort );

                listenServer = new TcpServer( listenEndPoint, asyncAcceptLimit );

                serverWaitHandles[ i ] = listenServer.serverDone;

                tcpServerList.Add( listenServer );

            }

            catch ( Exception err )

            {

                Console.WriteLine("Error: {0}", err.Message);

            }

        }



        // Wait until all the TCP server sockets are done

        Console.WriteLine("Waiting until all the TCP server sockets are done...");

        while ( true )

        {

            if ( ManualResetEvent.WaitAll( serverWaitHandles, 10000, false )== false )

            {

                // Wait timed out so print some statistics

                Console.WriteLine("                             Client Count                  Byte Count");

                Console.WriteLine(" Server Address             Current/Total                 Sent/Received");

                for(int i=0; i < tcpServerList.Count ;i++)

                {

                    Console.WriteLine(" {0} {1} / {2} {3}/{4}",

                        ((TcpServer)tcpServerList[i]).tcpSocket.LocalEndPoint.ToString().PadRight(20, ' '),

                        ((TcpServer)tcpServerList[i]).currentClientCount.ToString().PadLeft(12, ' '),

                        ((TcpServer)tcpServerList[i]).totalClientCount.ToString().PadRight(12, ' '),

                        ((TcpServer)tcpServerList[i]).TotalSendBytes.ToString().PadLeft(12, ' '),

                        ((TcpServer)tcpServerList[i]).TotalReceiveBytes.ToString().PadRight(12, ' ')

                        );

                }

                continue;

            }

            else

            {

                break;

            }

        }

        Console.WriteLine("All listen sockets have been signaled...closing listen sockets...");



        for(int i=0; i < listenInterfaces.Count ;i++)

        {

            TcpServer   listenServer = (TcpServer) tcpServerList[i];



            listenServer.Shutdown();

            listenServer.tcpSocket.Close();

        }

        Console.WriteLine("Sleeping for 10000...");

        Thread.Sleep( 10000 );

        }



Build and run the project.



C# Asynchronous Server Program Example - building the project



The following is the sample output when run from the command prompt.



C# Asynchronous Server Program Example - a sample output without any arguments supplied



In this project, we have included a reference to the AsyncPacketClass library. You can see the DLL file has been included in this project as shown in the following Figure.



C# Asynchronous Server Program Example - the shared DLL file also imported into the project when we add a reference



The following sample output shows the server program run from the command prompt.



C# Asynchronous Server Program Example - a sample output with some options used run from the command prompt



We will test this server with the client example that will be created in the next exercise.
