Chapter 9 Part 5:

Server or Listening Sockets Programming





What do we have in this chapter 9 Part 5?

  1. VB .NET Asynchronous Server Program Example





VB .NET Asynchronous Server Program Example



Create a new class library project and you might want to use the solution name, AsyncTcpServerVB and project name, AsyncTcpServer as shown in the following Figure.



VB .NET Asynchronous Server Program Example - a new class library project creation using the VS 2008

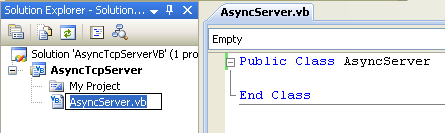

Rename the source file to AsyncServer to reflect the application we are going to develop.



VB .NET Asynchronous Server Program Example - renaming the source file to reflect the application to be developed



Add the following Imports directives.



Imports System

Imports System.Net

Imports System.Net.Sockets

Imports System.Collections

Imports System.Threading

Imports AsyncPacketClass.AsyncPacket



Next, add the reference to the AsyncPacketClass. Select project folder > Right click mouse > Select Add Reference context menu.



VB .NET Asynchronous Server Program Example - invoking the Add Reference page

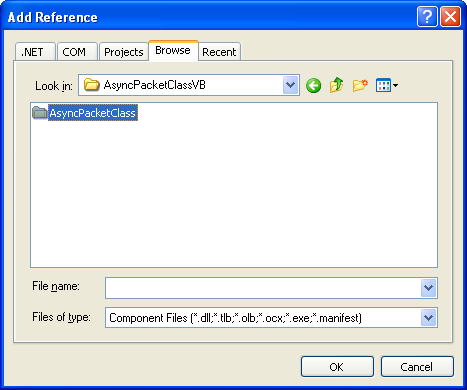

Browse the AsyncPacketClass project folder.



VB .NET Asynchronous Server Program Example - browsing and finding the DLL file



Browse the DLL file, select the file and click OK.



VB .NET Asynchronous Server Program Example - selecting the DLL file to be included in the project as a reference

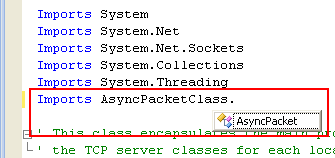

To make sure the reference to the AsyncPacketClass class is functioning, you can build this project. There should be no error in the Output window. You can also test AsyncPacketClass Imports directive intellisense as shown in the following Figure. After placing the dot (.), any method available in the class will be displayed.



VB .NET Asynchronous Server Program Example - testing the custom made class accessible



Add the following usage() and the Main() sub routine codes, encapsulated in the AsyncServer class.



' Displays a simple usage information

    Shared Sub usage()

        Console.WriteLine("Executable_file_name [-a count] [-l address] [-p port]")

        Console.WriteLine("Available options:")

        Console.WriteLine("     -a count        Number of simultaneous asynch Accepts (BeginAccept) allowed")

        Console.WriteLine("     -l address      Local address to create a TCP server on (can be specified multiple times")

        Console.WriteLine("     -p port         Local port number each server listens on")

        Console.WriteLine()

    End Sub



    ' This is the main program that parses the command line parameters and sets up each TCP

    ' listening socket by creating a TcpServer object to handle client connections to each

    ' listening endpoint. The TcpServer object creates a AcceptedConection object for each

    ' established connection which handles IO operations from each client.

Shared Sub Main()

        Dim listenInterfaces As ArrayList = New ArrayList

        Dim tcpServerList As ArrayList = New ArrayList

        Dim asyncAcceptLimit As Integer = 10

        Dim listenPort As Integer = 5150



        ' Parse the command line

        Dim appArguments As String() = Environment.GetCommandLineArgs()

        Dim i As Integer



        usage()



        For i = 1 To appArguments.GetUpperBound(0)

            Try

                Dim CurArg() As Char = appArguments(i).ToCharArray(0, appArguments(i).Length)



                If (CurArg(0) = "-") Or (CurArg(0) = "/") Then

                    Select Case Char.ToLower(CurArg(1), System.Globalization.CultureInfo.CurrentCulture)

                        Case "a"

                            ' How many asynchronous accept (BeginAccepts) allowed simultaneously

                            i += 1

                            asyncAcceptLimit = System.Convert.ToInt32(appArguments(i))

                        Case "l"

                            ' Local interface(s) to bind to

                            i += 1

                            listenInterfaces.Add(IPAddress.Parse(appArguments(i)))

                        Case "p"

                            ' Port on which to listen

                            i += 1

                            listenPort = System.Convert.ToInt32(appArguments(i))

                        Case Else

                            usage()

                            Exit Sub

                    End Select

                End If

            Catch

                usage()

                Exit Sub

            End Try

        Next



        Dim ServerThread As RunServerThread = New RunServerThread

        Dim t As Thread



        ServerThread.asyncAcceptLimit = asyncAcceptLimit

        ServerThread.listenInterfaces = New ArrayList(listenInterfaces.Count)

        ServerThread.listenInterfaces.AddRange(listenInterfaces)

        ServerThread.listenPort = listenPort

        ServerThread.tcpServerList = New ArrayList(tcpServerList.Count)

        ServerThread.tcpServerList.AddRange(tcpServerList)



        ' Create a new thread and define its starting point.

        Console.WriteLine("Creating a new thread and define its starting point...")

        t = New Thread(AddressOf ServerThread.DoTheTask)

        t.Start()

    End Sub







Next, add RunServerThread class









    Class RunServerThread

    Public listenInterfaces As ArrayList

    Public tcpServerList As ArrayList

    Public asyncAcceptLimit As Integer

    Public listenPort As Integer



    Public Sub DoTheTask()

        ' Create an array of handles to signal when server sockets are finished

        Console.WriteLine("Creating an array of handles to signal when server sockets are finished...")

        Dim serverWaitHandles(listenInterfaces.Count - 1) As WaitHandle

        Dim i As Integer



        For i = 0 To listenInterfaces.Count - 1

            serverWaitHandles(i) = New ManualResetEvent(False)

        Next



        ' Create a TCP server socket for each local listen address passed to the application

        Console.WriteLine("Creating a TCP server socket for each local listen address passed to the application...")

        For i = 0 To listenInterfaces.Count - 1

            Dim listenEndPoint As IPEndPoint

            Dim listenServer As TcpServer



            Try

                listenEndPoint = New IPEndPoint(CType(listenInterfaces(i), IPAddress), listenPort)

                listenServer = New TcpServer(listenEndPoint, asyncAcceptLimit)

                serverWaitHandles(i) = listenServer.serverDone

                tcpServerList.Add(listenServer)

            Catch err As Exception

                Console.WriteLine("Error: {0}", err.Message)

            End Try

        Next



        Try

            ' Wait until all the TCP server sockets are done

            Console.WriteLine("Waiting until all the TCP server sockets are done...")

            While (True)

                If (ManualResetEvent.WaitAll(serverWaitHandles, 10000, False) = False) Then

                    ' Wait timed out so print some statistics



                    Console.WriteLine("                             Client Count                  Byte Count")

                    Console.WriteLine(" Server Address             Current/Total                 Sent/Received")



                    For i = 0 To tcpServerList.Count - 1

                        Console.WriteLine(" {0} {1} / {2} {3}/{4}", _

                            (CType(tcpServerList(i), TcpServer)).tcpSocket.LocalEndPoint.ToString().PadRight(20, " "), _

                            (CType(tcpServerList(i), TcpServer)).currentClientCount.ToString().PadLeft(12, " "), _

                            (CType(tcpServerList(i), TcpServer)).totalClientCount.ToString().PadRight(12, " "), _

                            (CType(tcpServerList(i), TcpServer)).TotalSendBytes.ToString().PadLeft(12, " "), _

                            (CType(tcpServerList(i), TcpServer)).TotalReceiveBytes.ToString().PadRight(12, " ") _

                            )

                    Next

                Else

                    Exit While

                End If

            End While



            Console.WriteLine("All listen sockets have been signaled...closing listen sockets...")



            For i = 0 To listenInterfaces.Count - 1



                Dim listenServer As TcpServer = CType(tcpServerList(i), TcpServer)



                listenServer.Shutdown()

                listenServer.tcpSocket.Close()

            Next

            Thread.Sleep(10000)

        Catch err As Exception

            Console.WriteLine("Error: {0}", err.Message)

        End Try

    End Sub

End Class

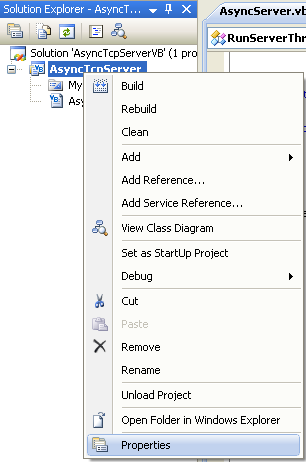

In order to test this project on the console, change the project type from DLL to EXE type. Select the project folder > Right click mouse > Select Properties context menu.



VB .NET Asynchronous Server Program Example - invoking the Project's property page

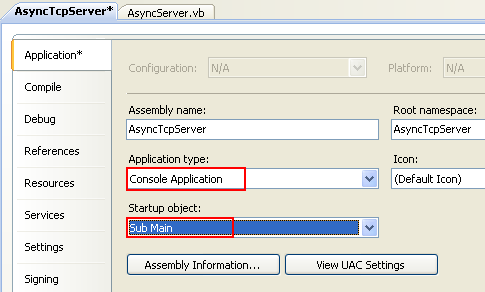

Change the Application type: to Console Application and the Startup object: to Sub Main.



VB .NET Asynchronous Server Program Example - Changing the Application type: to Console Application and the Startup object: to Main() subroutine

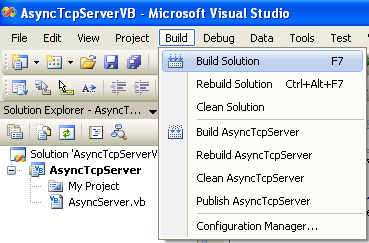

Build the project.



VB .NET Asynchronous Server Program Example - building the project

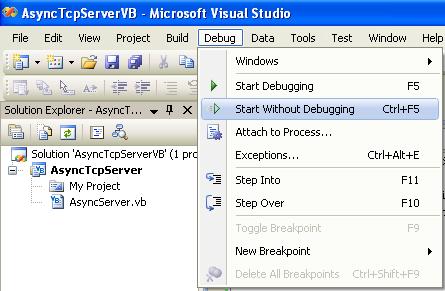

Run the project.



VB .NET Asynchronous Server Program Example - running the project



The following is the sample output.



VB .NET Asynchronous Server Program Example - a sample output with default argument values

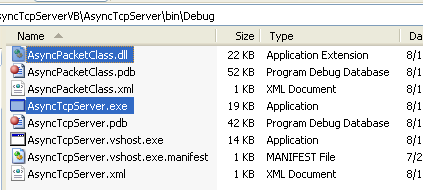

In this project, we have included a reference to the AsyncPacketClass library. You can see the DLL file has been included in this project’s Debug folder as shown in the following Figure.



VB .NET Asynchronous Server Program Example - the shared DLL file has been imported into the existing project when we add a reference



The following shows the sample output of the asynchronous tcp server when run from the command prompt. We will test this server program together with the client program example later.



VB .NET Asynchronous Server Program Example - a sample output in action

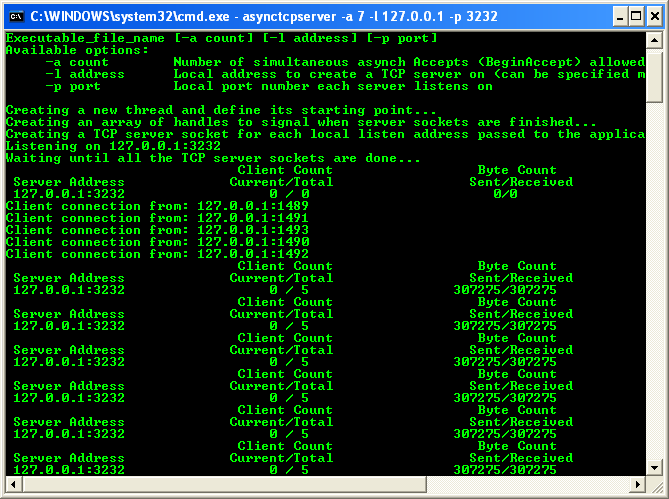

The following sample output shows the asynchronous tcp server is receiving a connection from a client. The client program example will be created in the next exercise.



VB .NET Asynchronous Server Program Example - a sample output that receive connection from clients
