Chapter 6 Part 4:

Introduction to System.Net





What do we have in this chapter 6 Part 4?

  1. C# Socket Program Example

  2. VB .NET Socket Program Example





C# Socket Program Example

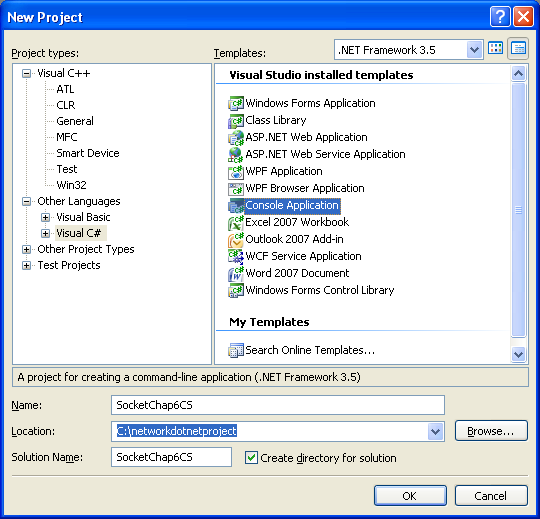

Create a new console application project. You can use the project and solution names as shown in the following Figure.



C# Socket Program Example - creating a new console application project



Add the following code.



using System;

using System.IO;

using System.Net;

using System.Text;

using System.Net.Sockets;



namespace SocketChap6CS

{

    /// <summary>

    /// This sample demonstrates the socket classes

    /// being used to download a Web page that is passed in on the command line.

    /// </summary>

    class Program

    {

        /// <summary>

        /// The main entry point for the application.

        /// </summary>

        [STAThread]

        static void Main(string[ ] args)

        {

            // Validate the input values

            if (args.Length < 2)

            {

                Console.WriteLine("Usage: Executable_file_name serverName path");

                Console.WriteLine("Example: Executable_file_name contoso.com /");

                return;

            }



            string server = args[0];

            string path = args[1];

            // Change accordingly...

            int port = 80;



            IPHostEntry host = null;

            IPEndPoint remoteEndPoint = null;

            Socket client = null;



            // Resolve the server name

            try

            {

                Console.WriteLine("Resolving the server name...");

                host = Dns.GetHostEntry(server);

            }

            catch (Exception ex)

            {

                Console.WriteLine(ex.ToString());

                return;

            }



            // Attempt to connect on each address returned from DNS. Break out once successfully connected

            foreach (IPAddress address in host.AddressList)

            {

                try

                {

                    client = new Socket(address.AddressFamily, SocketType.Stream, ProtocolType.Tcp);

                    Console.WriteLine("Socket() is OK...");

                    remoteEndPoint = new IPEndPoint(address, port);

                    client.Connect(remoteEndPoint);

                    Console.WriteLine("Connect() is OK, address: " + address + ", port: " + port);

                    break;

                }

                catch (SocketException ex)

                {

                    Console.WriteLine(ex.ToString());

                }

            }



            // MakeRequest will issue the HTTP download request and write the server response to the console

            MakeRequest(client, path, server);

            Console.WriteLine("MakeRequest() is OK...");

            client.Close();

            Console.WriteLine("Closing client...");

        }



        public static void MakeRequest(Socket client, string path, string server)

        {

            // Format the HTTP GET request string

            string Get = "GET " + path + " HTTP/1.0\r\nHost: " + server + "\r\nConnection: Close\r\n\r\n";

            Byte[] ByteGet = Encoding.ASCII.GetBytes(Get);



            // Send the GET request to the connected server

            client.Send(ByteGet);

            Console.WriteLine("Send() is OK...");



            // Create a buffer that is used to read the response

            byte[ ] responseData = new byte[1024];



            // Read the response and save the ASCII data in a string

            int bytesRead = client.Receive(responseData);

            Console.WriteLine("Receive() is OK...");

            StringBuilder responseString = new StringBuilder();

            while (bytesRead != 0)

            {

                responseString.Append(Encoding.ASCII.GetChars(responseData), 0, bytesRead);

                bytesRead = client.Receive(responseData);

            }

            // Display the response to the console

            Console.WriteLine(responseString.ToString());

        }

    }

}



Build and run the project (Start Without Debugging). The following are sample outputs when the executable was run at the command prompt.

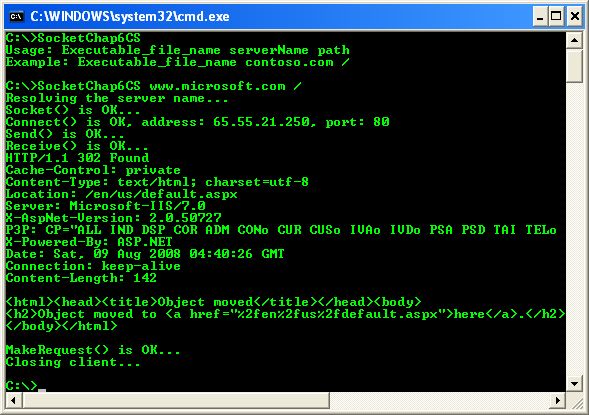

C# Socket Program Example - a sample outputs with and without argument values suplied



C# Socket Program Example - another output samples



VB .NET Socket Program Example



Create a new console application project. You can use the project and solution name as shown in the following Figure.



VB .NET Socket Program Example - creating  new console application project using VS 2008



Optionally you can change the Module name by changing the file name as shown in the following Figure.



  VB .NET Socket Program Example - renaming the source file



Add the following code.



Imports System

Imports System.IO

Imports System.Net

Imports System.Text

Imports System.Net.Sockets



' <summary>

' This sample demonstrates the socket classes

' being used to download a Web page that is passed in on the command line.

' </summary>

Module SocketChap6VB



    Sub Main(ByVal args As String())

        ' Validate the input values

        If args.Length < 2 Then

            Console.WriteLine("Usage: Executable_file_name serverName path")

            Console.WriteLine("Example: Executable_file_name contoso.com /")

            Return

        End If



        Dim server As String = args(0)

        Dim path As String = args(1)

        Dim port As Integer = 80

        Dim host As IPHostEntry

        Dim remoteEndPoint As IPEndPoint

        Dim client As Socket = Nothing



        ' Resolve the server name

        Try

            host = Dns.GetHostEntry(server)

        Catch ex As Exception

            Console.WriteLine(ex.ToString())

            Return

        End Try



        ' Attempt to connect on each address returned from DNS

        ' Break out once successfully connected

        For Each address As IPAddress In host.AddressList

            Try

                client = New Socket(address.AddressFamily, SocketType.Stream, ProtocolType.Tcp)

                Console.WriteLine("Socket() is OK...")

                remoteEndPoint = New IPEndPoint(address, port)

                client.Connect(remoteEndPoint)

                Console.WriteLine("Connect() is OK, IP address: {0}, port: {1}", address, port)

                Exit For

            Catch ex As Exception

                Console.WriteLine(ex.ToString())

            End Try

        Next



        ' MakeRequest will issue the HTTP download request

        ' and write the server response to the console

        MakeRequest(client, path, server)

        Console.WriteLine("MakeRequest() is OK...")

        Console.WriteLine("Closing client...")

        client.Close()

    End Sub

    Sub MakeRequest(ByVal client As Socket, ByVal path As String, ByVal server As String)



        ' Format the HTTP GET request string

        Dim getString As String = "GET " + path + " HTTP/1.0" + ControlChars.CrLf

        getString += "Host: " + server + ControlChars.CrLf + "Connection: Close"

        getString += ControlChars.CrLf + ControlChars.CrLf



        Dim ByteGet As Byte() = Encoding.ASCII.GetBytes(getString)



        ' Send the GET request to the connected server

        client.Send(ByteGet)

        Console.WriteLine("Send() is OK...")



        ' Create a buffer that is used to read the response

        Dim responseData() As Byte = New Byte(1024) {}



        ' Read the response and save the ASCII data in a string

        Dim bytesRead As Integer = client.Receive(responseData)

        Console.WriteLine("Receive() is OK...")

        Dim responseString As StringBuilder = New StringBuilder



        While bytesRead > 0

            responseString.Append(Encoding.ASCII.GetChars(responseData), 0, bytesRead)

            bytesRead = client.Receive(responseData)

        End While



        ' Display the response to the console

        Console.WriteLine(responseString.ToString())

    End Sub

End Module



Build and run the project (Start Without Debugging). The following are sample outputs when the executable was run at the command prompt.



VB .NET Socket Program Example - sample outputs



VB .NET Socket Program Example - another sample outputs
