Socket Options and Ioctls 7 part 5





What do we have in this chapter 7 part 5?

  1. The IP_TOS and Type-of-Service Bit Program Example

  2. The SIO_ADDRESS_LIST_QUERY Program Example



The IP_TOS and Type-of-Service Bit Program Example



Create a new empty Win32 console mode application and add the project/solution name.



Winsock 2 socket options and ioctls: The IP_TOS and Type-of-Service Bit program example



Add the following source code.



// Description:

//    This sample sets the Type-of-Service bit and sends

//    some datagrams. To really see the results of this

//    option you need to capture the packets with Microsoft

//    Network Monitor (netmon) to view the actual packets.

//

// Command line arguments

//    Ip_tos ip

//                      ip         IP Address

//

// Link to ws2_32.lib

#include <winsock2.h>

#include <ws2tcpip.h>

#include <stdio.h>



// Function: main

// Description:

//    Load Winsock, create a datagram socket, set the IP_TOS

//    option and send some packets.

int main(int argc, char **argv)

{

    WSADATA       wsd;

    SOCKET        s;

    SOCKADDR_IN   remote;

    char         *str="This is a test string from sender!";

    int           ret, iTos;



    if(argc < 2)

    {

         printf("Usage: %s <IP_Address_to_send>\n", argv[0]);

         printf("Example %s 74.125.45.100\n", argv[0]);

         exit(1);

     }



    // Load Winsock

    if (WSAStartup(MAKEWORD(2,2), &wsd) != 0)

    {

        printf("WSAStartup() failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("WSAStartup() is pretty fine!\n");



    // Create a socket

    s = WSASocket(AF_INET, SOCK_DGRAM, IPPROTO_UDP, NULL, 0,WSA_FLAG_OVERLAPPED);

    if (s == INVALID_SOCKET)

    {

        printf("WSASocket() failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("WSASocket() is OK!\n");



    // Set the TOS bit

    iTos = 1;

    ret = setsockopt(s, IPPROTO_IP, IP_TOS, (char *)&iTos, sizeof(iTos));

    if (ret == SOCKET_ERROR)

    {

        printf("setsockopt(IP_TOS) failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("setsockopt(IP_TOS) should be OK!\n");



    // Perform a sendto()

    printf("Sending all my love....\n");

    remote.sin_family = AF_INET;

    remote.sin_addr.s_addr = inet_addr(argv[1]);

    remote.sin_port = htons(5150);



    ret = sendto(s, str, strlen(str), 0, (SOCKADDR *)&remote, sizeof(remote));

    if (ret == SOCKET_ERROR)

    {

        printf("sendto() failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("sendto() is OK!\n");



    printf("Wrote %d bytes...\n", ret);

    // Cleanup

    if(closesocket(s) == 0)

         printf("closesocket() should be fine!\n");

    else

         printf("closesocket() failed with error code %d\n", WSAGetLastError());



    if(WSACleanup() == 0)

          printf("WSACleanup() is OK!\n");

    else

          printf("WSACleanup() failed with error code %d\n", WSAGetLastError());

    return 0;

}



Build and run the project.



---------------------------------------------------------

Winsock 2 socket options and ioctls: The IP_TOS and Type-of-Service Bit program example, sample output



The SIO_ADDRESS_LIST_QUERY Program Example



Create a new empty Win32 console mode application and add the project/solution name.

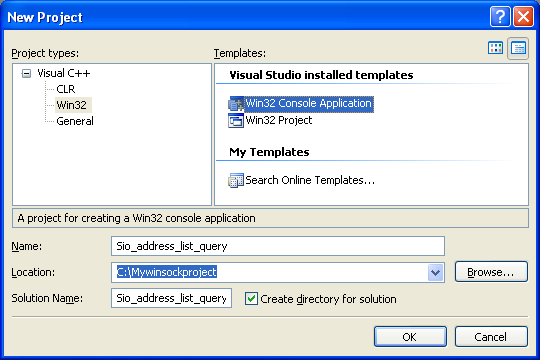

Winsock 2 socket options and ioctls: The SIO_ADDRESS_LIST_QUERY program example



Add the following source code.



// Description:

//    This sample shows how to use the SIO_ADDRESS_LIST_QUERY

//    ioctl. This is a Windows 2000 command which lists the

//    local interfaces availability.

//

// Link to ws2_32.lib

#include <winsock2.h>

#include <ws2tcpip.h>

#include <stdio.h>



// Function: main

// Description: Load Winsock, create a socket, and perform the interface query

int main(int argc, char **argv)

{

    WSADATA       wsd;

    SOCKET        s;

    DWORD         dwBytesRet=0;

    char          buf[1024];

    int           ret, i;

    SOCKET_ADDRESS_LIST *slist;

    SOCKADDR_IN  *addr;



    // Load Winsock

    if (WSAStartup(MAKEWORD(2,2), &wsd) != 0)

    {

        printf("WSAStartup() failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("WSAStartup() is OK!\n");



    s = WSASocket(AF_INET, SOCK_DGRAM, IPPROTO_UDP, NULL, 0, WSA_FLAG_OVERLAPPED);

    if (s == INVALID_SOCKET)

    {

        printf("WSASocket() failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("WSASocket() is OK!\n");



    // Get the address list

    ret = WSAIoctl(s, SIO_ADDRESS_LIST_QUERY, NULL, 0, buf, 1024, &dwBytesRet, NULL, NULL);

    if (ret == SOCKET_ERROR)

    {

        printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) failed with error code %d\n", WSAGetLastError());

        return -1;

    }

    else

        printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) is OK!\n");



    printf("Bytes returned: %d bytes\n", dwBytesRet);

    // Print the results

    slist = (SOCKET_ADDRESS_LIST *)buf;

    printf("      Addr Count: %d\n", slist->iAddressCount);



    for(i=0; i < slist->iAddressCount ;i++)

    {

        addr = (SOCKADDR_IN *) slist->Address[i].lpSockaddr;

        printf("       Addr [%02d]: %s\n", i, inet_ntoa(addr->sin_addr));

        printf("Addr Length [%02d]: %d bytes\n", i, slist->Address[i].iSockaddrLength);

    }

    // Cleanup

    if(closesocket(s) == 0)

        printf("closesocket() should be fine!\n");

    else

        printf("closesocket() failed with error code %d\n", WSAGetLastError());

    if(WSACleanup() == 0)

        printf("WSACleanup() is OK!\n");

    else

        printf("WSACleanup() failed with error code %d\n", WSAGetLastError());

    return 0;

}



Build and run the project.



Winsock 2 socket options and ioctls: The SIO_ADDRESS_LIST_QUERY program example - a sample output
