Using the IOCTLS SIO_RCVALL, SIO_RCVALL_MCAST and SIO_RCVALL_IGMPMCAST Program Example
|
|
Using the IOCTLS SIO_RCVALL, SIO_RCVALL_MCAST and SIO_RCVALL_IGMPMCAST Program Example
Create a new empty Win32 console mode application and add the project/solution name.
Add the following source code.
// Description: // This sample shows how to use the ioctls SIO_RCVALL, // SIO_RCVALL_MCAST, and SIO_RCVALL_IGMPMCAST. This sample // captures all packets of the given type and also is able // to set filters on source and destination IP addresses // and ports. This sample is Windows 2000 only however has been tested on Win XP Pro. |
//
// Command line arguments:
// sio_rcvall -t:[ip|igmp|multicast] -i:int -sa:IP -sp:port
// -da:IP -dp:port
// -t:string Filter traffic type
// ip Capture all IP packets
// igmp Capture all IGMP packets only
// multicast Capture all multicast IP packets
// -i:int Capture on this interface
// This is a zero based index of the
// local interfaces
// -sa:IP Filter on source address
// -sp:Port Filter on source port
// -da:IP Filter on dest address
// -dp:Port Filter on dest port
//
//
#include "parser.h"
// Link to ws2_32.lib
#include <winsock2.h>
#include <mstcpip.h>
#include <ws2tcpip.h>
#include <stdio.h>
DWORD dwIoControlCode=SIO_RCVALL, dwProtocol=IPPROTO_IP, dwInterface=0;
// Filters
unsigned int uiSourceAddr=0, uiDestAddr=0;
unsigned short usSourcePort = 0, usDestPort = 0;
BOOL bFilter=FALSE;
// Prototypes
void PrintInterfaceList();
int GetInterface(SOCKET s, SOCKADDR_IN *ifx, int num);
// Function: usage
// Description: Prints usage information.
int usage(char *progname)
{
printf("Usage: %s -t:traffic-type [interface-num]\n\n", progname);
printf(" -t:string Filter traffic type\n");
printf(" Available traffic types:\n");
printf(" ip Capture all IP packets\n");
printf(" igmp Capture all IGMP packets only\n");
printf(" multicast Capture all multicast IP packets\n");
printf(" -i:int Capture on this interface\n");
printf(" Available interfaces:\n");
PrintInterfaceList();
printf(" -sa:IP Filter on source address\n");
printf(" -sp:Port Filter on source port\n");
printf(" -da:IP Filter on dest address\n");
printf(" -dp:Port Filter on dest port\n");
printf("\n");
if(WSACleanup() == 0)
printf("WSACleanup() is OK!\n");
else
printf("WSACleanup() failed with error code %d\n", WSAGetLastError());
return 0;
}
// Function: ValidateArgs
// Description:
// This function parses the command line arguments and
// sets global variables to indicate how the app should act.
void ValidateArgs(int argc, char **argv)
{
int i;
char *ptr;
if(argc < 2)
{
usage(argv[0]);
exit(1);
}
for(i=1; i < argc ;i++)
{
if (strlen(argv[i]) < 2)
continue;
if ((argv[i][0] == '-') || (argv[i][0] == '/'))
{
switch (tolower(argv[i][1]))
{
case 't': // traffic type
ptr = &argv[i][3];
while (*ptr)
*ptr++ = tolower(*ptr);
if (!strcmp(&argv[i][3], "ip"))
{
dwIoControlCode = SIO_RCVALL;
dwProtocol = IPPROTO_IP;
}
else if (!strcmp(&argv[i][3], "igmp"))
{
dwIoControlCode = SIO_RCVALL_IGMPMCAST;
dwProtocol = IPPROTO_IGMP;
}
else if (!strcmp(&argv[i][3], "multicast"))
{
dwIoControlCode = SIO_RCVALL_MCAST;
dwProtocol = IPPROTO_IGMP;
}
else
usage(argv[0]);
break;
case 'i': // interface number
dwInterface = atoi(&argv[i][3]);
break;
case 's': // Filter on source ip or port
if (tolower(argv[i][2]) == 'a')
uiSourceAddr = ntohl(inet_addr(&argv[i][4]));
else if (tolower(argv[i][2]) == 'p')
usSourcePort = (unsigned short)atoi(&argv[i][4]);
else
usage(argv[0]);
bFilter = TRUE;
break;
case 'd': // Filter on dest ip or port
if (tolower(argv[i][2]) == 'a')
uiDestAddr = ntohl(inet_addr(&argv[i][4]));
else if (tolower(argv[i][2]) == 'p')
usDestPort = (unsigned short)atoi(&argv[i][4]);
else
usage(argv[0]);
bFilter = TRUE;
break;
default:
usage(argv[0]);
}
}
}
return;
}
// Function: PrintInterfaceList
// Description: This function prints all local IP interfaces.
void PrintInterfaceList()
{
SOCKET_ADDRESS_LIST *slist=NULL;
SOCKET s;
char buf[2048];
DWORD dwBytesRet;
int ret, i;
s = socket(AF_INET, SOCK_STREAM, IPPROTO_IP);
if (s == SOCKET_ERROR)
{
printf("socket() failed with error code %d\n", WSAGetLastError());
return;
}
else
printf("socket() is fine!\n");
ret = WSAIoctl(s, SIO_ADDRESS_LIST_QUERY, NULL, 0, buf, 2048, &dwBytesRet, NULL, NULL);
if (ret == SOCKET_ERROR)
{
printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) failed with error code %d\n", WSAGetLastError());
return;
}
else
printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) is OK!\n");
slist = (SOCKET_ADDRESS_LIST *)buf;
for(i=0; i < slist->iAddressCount ;i++)
{
printf(" %d [%s]\n", i, inet_ntoa(((SOCKADDR_IN *)slist->Address[i].lpSockaddr)->sin_addr));
}
if(closesocket(s) == 0)
printf("closesocket() should be fine!\n");
else
printf("closesocket() failed with error code %d\n", WSAGetLastError());
return;
}
// Function: GetInterface
// Description:
// This function retrieves a zero based index and returns
// the IP interface corresponding to that.
int GetInterface(SOCKET s, SOCKADDR_IN *ifx, int num)
{
SOCKET_ADDRESS_LIST *slist=NULL;
char buf[2048];
DWORD dwBytesRet;
int ret;
ret = WSAIoctl(s, SIO_ADDRESS_LIST_QUERY, NULL, 0, buf, 2048, &dwBytesRet, NULL, NULL);
if (ret == SOCKET_ERROR)
{
printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) failed with error code %d\n", WSAGetLastError());
return -1;
}
else
printf("WSAIoctl(SIO_ADDRESS_LIST_QUERY) is OK!\n");
slist = (SOCKET_ADDRESS_LIST *)buf;
if (num >= slist->iAddressCount)
return -1;
ifx->sin_addr.s_addr = ((SOCKADDR_IN *)slist->Address[num].lpSockaddr)->sin_addr.s_addr;
return 0;
}
// Function: main
// Description:
// This function loads Winsock, parses the command line, and
// begins receiving packets. Once a packet is received they
// are decoded. Because we are receiving IP datagrams, the
// receive call will return whole datagrams.
int main(int argc, char **argv)
{
SOCKET s;
WSADATA wsd;
SOCKADDR_IN if0;
int ret, count;
unsigned int optval;
DWORD dwBytesRet, dwFlags, nproc;
char rcvbuf[MAX_IP_SIZE];
WSABUF wbuf;
// Load Winsock
if (WSAStartup(MAKEWORD(2,2), &wsd) != 0)
{
printf("WSAStartup() failed with error code %d\n", WSAGetLastError());
return -1;
}
else
printf("WSAStartup() is OK!\n");
// Parse the command line
ValidateArgs(argc, argv);
if (bFilter)
{
printf("Source Port: %d\n", usSourcePort);
printf("Dest Port: %d\n", usDestPort);
}
// Create a raw socket for receiving IP datagrams
s = WSASocket(AF_INET, SOCK_RAW, dwProtocol, NULL, 0, WSA_FLAG_OVERLAPPED);
if (s == INVALID_SOCKET)
{
printf("WSASocket() for raw socket failed with error code %d\n", WSAGetLastError());
return -1;
}
else
printf("WSASocket() for raw socket is OK!\n");
// Get an interface to read IP packets on
if (GetInterface(s, &if0, dwInterface) != 0)
{
printf("Unable to obtain an interface!\n");
return -1;
}
else
printf("GetInterface() is working!\n");
printf("Binding to if: %s\n", inet_ntoa(if0.sin_addr));
// This socket must be bound before calling the ioctl
if0.sin_family = AF_INET;
if0.sin_port = htons(0);
if (bind(s, (SOCKADDR *)&if0, sizeof(if0)) == SOCKET_ERROR)
{
printf("bind() failed with error code %d\n", WSAGetLastError());
return -1;
}
else
printf("bind() is OK!\n");
// Set the SIO_RCVALLxxx ioctl
optval = 1;
if (WSAIoctl(s, dwIoControlCode, &optval, sizeof(optval), NULL, 0, &dwBytesRet, NULL, NULL) == SOCKET_ERROR)
{
printf("WSAIotcl(%ul) failed with error code %d\n", dwIoControlCode, WSAGetLastError());
return -1;
}
else
printf("WSAIotcl(%ul) is OK!\n", dwIoControlCode);
// Start receiving IP datagrams until interrupted
count = 0;
while (1)
{
wbuf.len = MAX_IP_SIZE;
wbuf.buf = rcvbuf;
dwFlags = 0;
ret = WSARecv(s, &wbuf, 1, &dwBytesRet, &dwFlags, NULL, NULL);
if (ret == SOCKET_ERROR)
{
printf("WSARecv() failed with error code %d\n", WSAGetLastError());
return -1;
}
else
printf("WSARecv() is OK!\n");
// Decode the IP header
if (!(nproc = DecodeIPHeader(&wbuf, uiSourceAddr, usSourcePort, uiDestAddr, usDestPort)))
{
printf("Error decoding the IP header!\n");
break;
}
}
// Cleanup
if(closesocket(s) == 0)
printf("closesocket() should be fine!\n");
else
printf("closesocket() failed with error code %d\n", WSAGetLastError());
if(WSACleanup() == 0)
printf("WSACleanup() is OK!\n");
else
printf("WSACleanup() failed with error code %d\n", WSAGetLastError());
return 0;
}

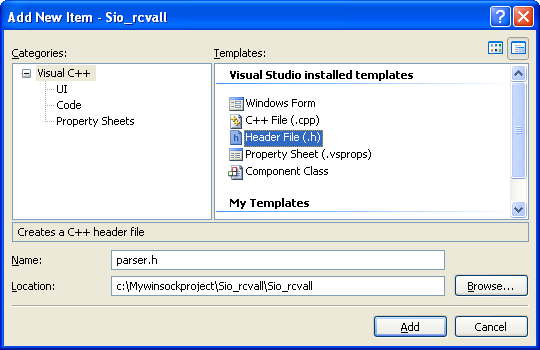

Add the parser.h header file.
Add the source code.
#ifndef _RCVALL_H_
#define _RCVALL_H_
#include <winsock2.h>
#include <windows.h>
#define MAX_IP_SIZE 65535
#define MIN_IP_HDR_SIZE 20
#define HI_WORD(byte) (((byte) >> 4) & 0x0F)
#define LO_WORD(byte) ((byte) & 0x0F)
extern char *szProto[];
void PrintRawBytes (BYTE *ptr, DWORD len);
int DecodeIGMPHeader(WSABUF *wsabuf, DWORD iphdrlen);
int DecodeUDPHeader (WSABUF *wsabuf, DWORD iphdrlen);
int DecodeTCPHeader (WSABUF *wsabuf, DWORD iphdrlenz);
int DecodeIPHeader (WSABUF *wasbuf, unsigned int srcaddr,
unsigned short srcport, unsigned int destaddr, unsigned short destport);
#endif

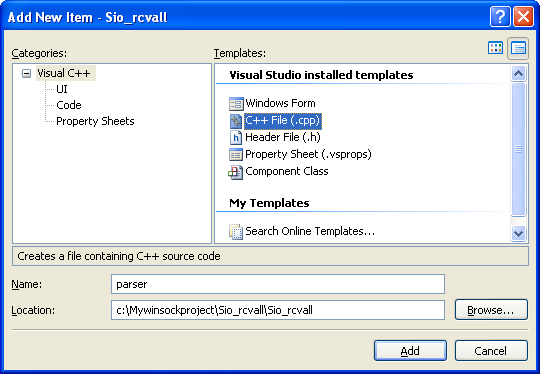

Add the definition file for parser.h, parser.cpp.
----------------------------------------------------------------------
Add the source code.
// Description:
// This file is the companion to rcvall.c and contains
// the parser routines for printing out IP, UDP, TCP,
// ICMP, and IGMP packets.
#include <stdio.h>
#include "parser.h"
extern BOOL bFilter;
// A list of protocol types in the IP protocol header
char *szProto[ ] = {"Reserved", // 0
"ICMP", // 1
"IGMP", // 2
"GGP", // 3
"IP", // 4
"ST", // 5
"TCP", // 6
"UCL", // 7
"EGP", // 8
"IGP", // 9
"BBN-RCC-MON", // 10
"NVP-II", // 11
"PUP", // 12
"ARGUS", // 13
"EMCON", // 14
"XNET", // 15
"CHAOS", // 16
"UDP", // 17
"MUX", // 18
"DCN-MEAS", // 19
"HMP", // 20
"PRM", // 21
"XNS-IDP", // 22
"TRUNK-1", // 23
"TRUNK-2", // 24
"LEAF-1", // 25
"LEAF-2", // 26
"RDP", // 27
"IRTP", // 28
"ISO-TP4", // 29
"NETBLT", // 30
"MFE-NSP", // 31
"MERIT-INP", // 32
"SEP", // 33
"3PC", // 34
"IDPR", // 35
"XTP", // 36
"DDP", // 37
"IDPR-CMTP", // 38
"TP++", // 39
"IL", // 40
"SIP", // 41
"SDRP", // 42
"SIP-SR", // 43
"SIP-FRAG", // 44
"IDRP", // 45
"RSVP", // 46
"GRE", // 47
"MHRP", // 48
"BNA", // 49
"SIPP-ESP", // 50
"SIPP-AH", // 51
"I-NLSP", // 52
"SWIPE", // 53
"NHRP", // 54
"unassigned", // 55
"unassigned", // 56
"unassigned", // 57
"unassigned", // 58
"unassigned", // 59
"unassigned", // 60
"any host internal protocol", // 61
"CFTP", // 62
"any local network", // 63
"SAT-EXPAK", // 64
"KRYPTOLAN", // 65
"RVD", // 66
"IPPC", // 67
"any distributed file system", // 68
"SAT-MON", // 69
"VISA", // 70
"IPCV", // 71
"CPNX", // 72
"CPHB", // 73
"WSN", // 74
"PVP", // 75
"BR-SAT-MON", // 76
"SUN-ND", // 77
"WB-MON", // 78
"WB-EXPAK", // 79
"ISO-IP", // 80
"VMTP", // 81
"SECURE-VMTP",// 82
"VINES", // 83
"TTP", // 84
"NSFNET-IGP", // 85
"DGP", // 86
"TCF", // 87
"IGRP", // 88
"OSPFIGP", // 89
"Sprite-RPC", // 90
"LARP", // 91
"MTP", // 92
"AX.25", // 93
"IPIP", // 94
"MICP", // 95
"SCC-SP", // 96
"ETHERIP", // 97
"ENCAP", // 98
"any private encryption scheme", // 98
"GMTP" // 99
};
// The types of IGMP messages
char *szIgmpType[] = {"",
"Host Membership Query",
"HOst Membership Report",
"",
"",
"",
"Version 2 Membership Report",
"Leave Group"
};
// Function: PrintRawBytes
// Description: This function simply prints out a series of bytes as hexadecimal digits.
void PrintRawBytes(BYTE *ptr, DWORD len)
{
int i;
while (len > 0)
{
for(i=0; i < 20 ;i++)
{
printf("%x%x ", HI_WORD(*ptr), LO_WORD(*ptr));
len--;
ptr++;
if (len == 0)
break;
}
printf("\n");
}
}
// Function: DecodeIGMPHeader
// Description:
// This function takes a pointer to a buffer containing
// an IGMP packet and prints it out in a readable form.
int DecodeIGMPHeader(WSABUF *wsabuf, DWORD iphdrlen)
{
BYTE *hdr = (BYTE *)(wsabuf->buf + iphdrlen);
unsigned short chksum, version, type, maxresptime;
SOCKADDR_IN addr;
version = HI_WORD(*hdr);
type = LO_WORD(*hdr);
hdr++;
maxresptime = *hdr;
hdr++;
memcpy(&chksum, hdr, 2);
chksum = ntohs(chksum);
hdr += 2;
memcpy(&(addr.sin_addr.s_addr), hdr, 4);
printf(" IGMP HEADER:\n");
if ((type == 1) || (type == 2))
version = 1;
else
version = 2;
printf(" IGMP Version = %d\n", version);
printf(" IGMP Type = %s\n", szIgmpType[type]);
if (version == 2)
printf(" Max Resp Time = %d\n", maxresptime);
printf(" IGMP Grp Addr = %s\n", inet_ntoa(addr.sin_addr));
// ExitProcess(0);
return 0;
}
// Function: DecodeUDPHeader
// Description:
// This function takes a buffer which points to a UDP
// header and prints it out in a readable form.
int DecodeUDPHeader(WSABUF *wsabuf, DWORD iphdrlen)
{
BYTE *hdr = (BYTE *)(wsabuf->buf + iphdrlen);
unsigned short shortval, udp_src_port, udp_dest_port, udp_len, udp_chksum;
memcpy(&shortval, hdr, 2);
udp_src_port = ntohs(shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
udp_dest_port = ntohs(shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
udp_len = ntohs(shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
udp_chksum = ntohs(shortval);
printf(" UDP HEADER\n");
printf(" Source Port: %-05d | Dest Port: %-05d\n", udp_src_port, udp_dest_port);
printf(" UDP Len: %-05d | ChkSum: 0x%08x\n", udp_len, udp_chksum);
return 0;
}
// Function: DecodeTCPHeader
// Description: This function takes a buffer pointing to a TCP header and prints it out in a readable form.
int DecodeTCPHeader(WSABUF *wsabuf, DWORD iphdrlen)
{
BYTE *hdr = (BYTE *)(wsabuf->buf + iphdrlen);
unsigned short shortval;
unsigned int longval;
printf(" TCP HEADER\n");
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval);
printf(" Src Port : %d\n", shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval);
printf(" Dest Port : %d\n", shortval);
hdr += 2;
memcpy(&longval, hdr, 4);
longval = ntohl(longval);
printf(" Seq Num : %ul\n", longval);
hdr += 4;
memcpy(&longval, hdr, 4);
longval = ntohl(longval);
printf(" ACK Num : %ul\n", longval);
hdr += 4;
printf(" Header Len : %d (bytes %d)\n", HI_WORD(*hdr), (HI_WORD(*hdr) * 4));
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval) & 0x3F;
printf(" Flags : ");
if (shortval & 0x20)
printf("URG ");
if (shortval & 0x10)
printf("ACK ");
if (shortval & 0x08)
printf("PSH ");
if (shortval & 0x04)
printf("RST ");
if (shortval & 0x02)
printf("SYN ");
if (shortval & 0x01)
printf("FIN ");
printf("\n");
hdr += 2;
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval);
printf(" Window size: %d\n", shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval);
printf(" TCP Chksum : %d\n", shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
shortval = ntohs(shortval);
printf(" Urgent ptr : %d\n", shortval);
return 0;
}
// Function: DecodeIPHeader
// Description: This function takes a pointer to an IP header and prints it out in a readable form.
int DecodeIPHeader(WSABUF *wsabuf, unsigned int srcip, unsigned short srcport, unsigned int destip, unsigned short destport)
{
BYTE *hdr = (BYTE *)wsabuf->buf, *nexthdr = NULL;
unsigned short shortval;
SOCKADDR_IN srcaddr, destaddr;
unsigned short ip_version,
ip_hdr_len,
ip_tos,
ip_total_len,
ip_id,
ip_flags,
ip_ttl,
ip_frag_offset,
ip_proto,
ip_hdr_chksum,
ip_src_port,
ip_dest_port;
unsigned int ip_src, ip_dest;
BOOL bPrint = TRUE;
ip_version = HI_WORD(*hdr);
ip_hdr_len = LO_WORD(*hdr) * 4;
nexthdr = (BYTE *)(wsabuf->buf + ip_hdr_len);
hdr++;
ip_tos = *hdr;
hdr++;
memcpy(&shortval, hdr, 2);
ip_total_len = ntohs(shortval);
hdr += 2;
memcpy(&shortval, hdr, 2);
ip_id = ntohs(shortval);
hdr += 2;
ip_flags = ((*hdr) >> 5);
memcpy(&shortval, hdr, 2);
ip_frag_offset = ((ntohs(shortval)) & 0x1FFF);
hdr+=2;
ip_ttl = *hdr;
hdr++;
ip_proto = *hdr;
hdr++;
memcpy(&shortval, hdr, 2);
ip_hdr_chksum = ntohs(shortval);
hdr += 2;
memcpy(&srcaddr.sin_addr.s_addr, hdr, 4);
ip_src = ntohl(srcaddr.sin_addr.s_addr);
hdr += 4;
memcpy(&destaddr.sin_addr.s_addr, hdr, 4);
ip_dest = ntohl(destaddr.sin_addr.s_addr);
hdr += 4;
// If packet is UDP, TCP, or IGMP read ahead and get the port values.
if (((ip_proto == 2) || (ip_proto == 6) || (ip_proto == 17)) && bFilter)
{
memcpy(&ip_src_port, nexthdr, 2);
ip_src_port = ntohs(ip_src_port);
memcpy(&ip_dest_port, nexthdr+2, 2);
ip_dest_port = ntohs(ip_dest_port);
if ((srcip == ip_src) || (srcport == ip_src_port) || (destip == ip_dest) || (destport == ip_dest_port))
{
bPrint = TRUE;
}
else
{
bPrint = FALSE;
}
}
else if (bFilter)
bPrint = FALSE;
// Print IP Hdr
if (bPrint)
{
printf("IP HEADER\n");
printf(" IP Version: %-10d | IP Header Len: %2d bytes | IP TOS: %X%X (hex)\n",
ip_version, ip_hdr_len, HI_WORD(ip_tos), LO_WORD(ip_tos));
printf(" IP Total Len: %-05d bytes | Identification: 0x%08X | IP Flags: %X (hex)\n", ip_total_len, ip_id, ip_flags);
printf(" Frag Offset: 0x%08X | TTL: %-10d | Protocol: %-10s \n", ip_frag_offset, ip_ttl, szProto[ip_proto]);
printf(" Hdr Checksum: 0x%08X\n", ip_hdr_chksum);
printf(" Src Addr: %-15s\n", inet_ntoa(srcaddr.sin_addr));
printf(" Dest Addr: %-15s\n", inet_ntoa(destaddr.sin_addr));
}
else
return ip_hdr_len;
switch (ip_proto)
{
case 2: // IGMP
DecodeIGMPHeader(wsabuf, ip_hdr_len);
break;
case 6: // TCP
DecodeTCPHeader(wsabuf, ip_hdr_len);
break;
case 17: // UDP
DecodeUDPHeader(wsabuf, ip_hdr_len);
break;
default:
printf(" No decoder installed for protocol\n");
break;
}
printf("\n");
return ip_hdr_len;
}

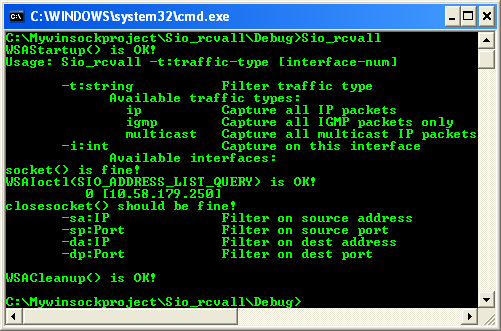

Build and run the project.
< SIO_GET_BROADCAST_ADDRESS & SO_KEEPALIVE_VALS Examples | Socket Options & IOCTLs Main | SIO_ROUTING_INTERFACE_QUERY, SO_ACCEPTCONN & SO_BROADCAST Examples >
