IP Helper Functions 13 Part 8





What do we have in this chapter 13 part 8?

  1. Program Example Using GetIpAddrTable() Function

  2. Program Example Using AddIPAddress() Function



Program Example Using GetIpAddrTable() Function



The GetIpAddrTable() function retrieves the interface–to–IPv4 address mapping table. Create a new empty Win32 console mode application and add the project/solution name.

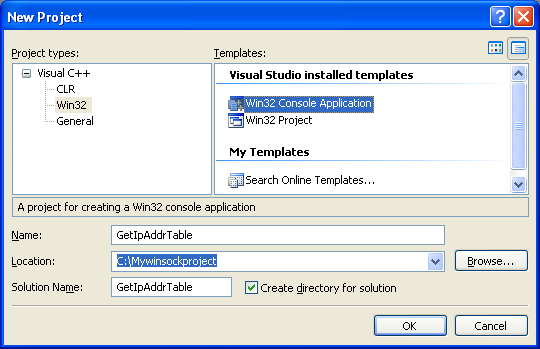

IP Helper Functions: Program Example Using GetIpAddrTable() Function



Add the following code.



// Description: This example retrieves the IP address table,

// then prints some members of the IP address entries in the table

//

// Link to ws2_32.lib

#include <winsock2.h>

#include <ws2tcpip.h>

// Link to          Iphlpapi.lib

#include <iphlpapi.h>

#include <stdio.h>



// Note: could also use malloc() and free()

#define MALLOC(x) HeapAlloc(GetProcessHeap(), 0, (x))

#define FREE(x) HeapFree(GetProcessHeap(), 0, (x))



int  main()

{

    int i;

    // Variables used by GetIpAddrTable

    PMIB_IPADDRTABLE pIPAddrTable;

    DWORD dwSize = 0;

    DWORD dwRetVal = 0;

    IN_ADDR IPAddr;

    // Variables used to return error message

    LPVOID lpMsgBuf;



    // Before calling AddIPAddress we use GetIpAddrTable to get

    // an adapter to which we can add the IP.

    pIPAddrTable = (MIB_IPADDRTABLE *) MALLOC(sizeof (MIB_IPADDRTABLE));



    if (pIPAddrTable)

    {

        // Make an initial call to GetIpAddrTable to get the

        // necessary size into the dwSize variable

        if (GetIpAddrTable(pIPAddrTable, &dwSize, 0) == ERROR_INSUFFICIENT_BUFFER)

        {

            printf("Not enough space, re-allocate...\n");

            FREE(pIPAddrTable);

            pIPAddrTable = (MIB_IPADDRTABLE *) MALLOC(dwSize);



            if (pIPAddrTable == NULL)

            {

                 printf("Memory re-allocation failed for GetIpAddrTable()\n");

                 exit(1);

            }

            else

                 printf("Memory re-allocation for GetIpAddrTable() is OK!\n");

         }

         else

              printf("Buffer is sufficient...\n");

    }



    // Make a second call to GetIpAddrTable to get the actual data we want

    if ( (dwRetVal = GetIpAddrTable( pIPAddrTable, &dwSize, 0 )) != NO_ERROR )

    {

        printf("GetIpAddrTable() failed with error %d\n", dwRetVal);

        if (FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER | FORMAT_MESSAGE_FROM_SYSTEM |

                FORMAT_MESSAGE_IGNORE_INSERTS, NULL, dwRetVal,

                    MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT),       // Default language

                          (LPTSTR) & lpMsgBuf, 0, NULL))

        {

            printf("\tError: %s", lpMsgBuf);

            LocalFree(lpMsgBuf);

        }

        exit(1);

    }

    else

         printf("GetIpAddrTable() should be fine!\n");



    printf("\n\tNumber of entries: %ld\n", pIPAddrTable->dwNumEntries);

    for (i=0; i < (int) pIPAddrTable->dwNumEntries; i++)

    {

        printf("\n\tInterface Index[%d]:\t%ld\n", i, pIPAddrTable->table[i].dwIndex);

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[i].dwAddr;

        printf("\tIP Address[%d]:     \t%s\n", i, inet_ntoa(IPAddr) );

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[i].dwMask;

        printf("\tSubnet Mask[%d]:    \t%s\n", i, inet_ntoa(IPAddr) );

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[i].dwBCastAddr;

        printf("\tBroadCast[%d]:      \t%s (%ld%)\n", i, inet_ntoa(IPAddr), pIPAddrTable->table[i].dwBCastAddr);

        printf("\tReassembly size[%d]:\t%ld\n", i, pIPAddrTable->table[i].dwReasmSize);

        printf("\tType and State[%d]:", i);



        if (pIPAddrTable->table[i].wType & MIB_IPADDR_PRIMARY)

            printf("\tPrimary IP Address");

        if (pIPAddrTable->table[i].wType & MIB_IPADDR_DYNAMIC)

            printf("\tDynamic IP Address");

        if (pIPAddrTable->table[i].wType & MIB_IPADDR_DISCONNECTED)

            printf("\tAddress is on disconnected interface");

        if (pIPAddrTable->table[i].wType & MIB_IPADDR_DELETED)

            printf("\tAddress is being deleted");

        if (pIPAddrTable->table[i].wType & MIB_IPADDR_TRANSIENT)

            printf("\tTransient address");

        printf("\n");

    }



    // Clean up/reset

    if (pIPAddrTable)

    {

        FREE(pIPAddrTable);

        pIPAddrTable = NULL;

    }



    return 0;

}



Build and run the project.



-----------------------------------------------------

IP Helper Functions: Program Example Using GetIpAddrTable() Function in action



Program Example Using AddIPAddress() Function



The AddIPAddress() function adds the specified IPv4 address to the specified adapter. Create a new empty Win32 console mode application and add the project/solution name.

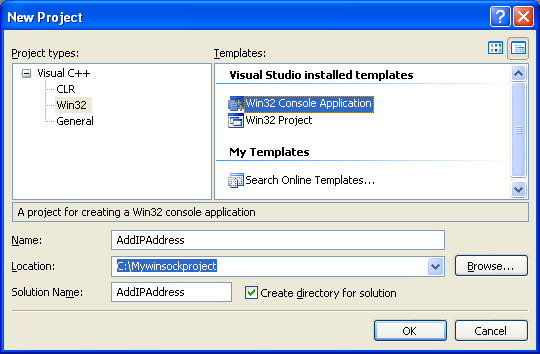

IP Helper Functions: Program Example Using AddIPAddress() Function



Add the following source code.



// Description:

//                      The following example retrieves the IP address table to determine

//                      the interface index for the first adapter, then adds the IP address

//                      specified on command line to the first adapter. The IP address that was added is then deleted.

//

// Link to ws2_32.lib

#include <winsock2.h>

#include <ws2tcpip.h>

// Link to          Iphlpapi.lib

#include <iphlpapi.h>

#include <stdio.h>



// Note: could also use malloc() and free()

#define MALLOC(x) HeapAlloc(GetProcessHeap(), 0, (x))

#define FREE(x) HeapFree(GetProcessHeap(), 0, (x))



int main(int argc, char **argv)

{

    // Variables used by GetIpAddrTable

    PMIB_IPADDRTABLE pIPAddrTable;

    DWORD dwSize = 0;

    DWORD dwRetVal = 0;

    IN_ADDR IPAddr;

    DWORD ifIndex;

    // IPv4 address and subnet mask we will be adding

    UINT iaIPAddress;

    UINT iaIPMask;

    // Variables where handles to the added IP are returned

    ULONG NTEContext = 0;

    ULONG NTEInstance = 0;

    // Variables used to return error message

    LPVOID lpMsgBuf;

    // Validate the parameters

    if (argc != 3)

    {

        printf("Usage: %s <IPAddress> <SubnetMask>\n", argv[0]);

        exit(1);

    }



    iaIPAddress = inet_addr(argv[1]);

    if (iaIPAddress == INADDR_NONE)

    {

        printf("Usage: %s <IPAddress> <SubnetMask>\n", argv[0]);

        exit(1);

    }



    iaIPMask = inet_addr(argv[2]);

    if (iaIPMask == INADDR_NONE)

    {

        printf("Usage: %s <IPAddress> <SubnetMask>\n", argv[0]);

        exit(1);

    }



    // Before calling AddIPAddress we use GetIpAddrTable to get

    // an adapter to which we can add the IP.

    pIPAddrTable = (MIB_IPADDRTABLE *) MALLOC(sizeof (MIB_IPADDRTABLE));

    if (pIPAddrTable == NULL)

    {

        printf("Error allocating memory needed to call GetIpAddrTable()\n");

        exit (1);

    }

    else

    {

        dwSize = 0;

        // Make an initial call to GetIpAddrTable to get the

        // necessary size into the dwSize variable

        if (GetIpAddrTable(pIPAddrTable, &dwSize, 0) == ERROR_INSUFFICIENT_BUFFER)

        {

            printf("Not enough space, re-allocate...\n");

            FREE(pIPAddrTable);

            pIPAddrTable = (MIB_IPADDRTABLE *) MALLOC(dwSize);

        }

        if (pIPAddrTable == NULL)

        {

            printf("Memory allocation failed for GetIpAddrTable()\n");

            exit(1);

        }

    }



    // Make a second call to GetIpAddrTable to get the

    // actual data we want

    if ((dwRetVal = GetIpAddrTable(pIPAddrTable, &dwSize, 0)) == NO_ERROR)

    {

        printf("Second call to GetIpAddrTable() is fine!\n");

        // Save the interface index to use for adding an IP address

        ifIndex = pIPAddrTable->table[0].dwIndex;

        printf("\n\tInterface Index:\t%ld\n", ifIndex);

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[0].dwAddr;

        printf("\tIP Address:       \t%s (%lu%)\n", inet_ntoa(IPAddr), pIPAddrTable->table[0].dwAddr);

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[0].dwMask;

        printf("\tSubnet Mask:      \t%s (%lu%)\n", inet_ntoa(IPAddr), pIPAddrTable->table[0].dwMask);

        IPAddr.S_un.S_addr = (u_long) pIPAddrTable->table[0].dwBCastAddr;

        printf("\tBroadCast Address:\t%s (%lu%)\n", inet_ntoa(IPAddr), pIPAddrTable->table[0].dwBCastAddr);

        printf("\tReassembly size:  \t%lu\n\n", pIPAddrTable->table[0].dwReasmSize);

    }

    else

    {

        printf("Call to GetIpAddrTable failed with error %d.\n", dwRetVal);

        if (pIPAddrTable)

            FREE(pIPAddrTable);

        exit(1);

    }



    if (pIPAddrTable)

    {

        FREE(pIPAddrTable);

        pIPAddrTable = NULL;

    }



    if ((dwRetVal = AddIPAddress(iaIPAddress, iaIPMask, ifIndex, &NTEContext, &NTEInstance)) == NO_ERROR)

    {

        printf("\tIPv4 address %s was successfully added.\n", argv[1]);

    }

    else

    {

        printf("AddIPAddress failed with error: %d\n", dwRetVal);



        if (FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER | FORMAT_MESSAGE_FROM_SYSTEM |

                FORMAT_MESSAGE_IGNORE_INSERTS, NULL, dwRetVal,

                    MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT),       // Default language

                          (LPTSTR) & lpMsgBuf, 0, NULL))

         {

            printf("\tError: %S", lpMsgBuf);

            LocalFree(lpMsgBuf);

            exit(1);

        }

    }



            // If you want to 'se' the added address, comment out the

            // following part, add the IP address, then ping the address

            // or use ipconfig /all



            // Delete the IP we just added using the NTEContext

            // variable where the handle was returned

            if ((dwRetVal = DeleteIPAddress(NTEContext)) == NO_ERROR)

            {

                 printf("\tIPv4 address %s was successfully deleted.\n", argv[1]);

            }

            else

            {

                printf("\tDeleteIPAddress failed with error: %d\n", dwRetVal);

                exit(1);

            }

    return 0;

}



Build and run the project.

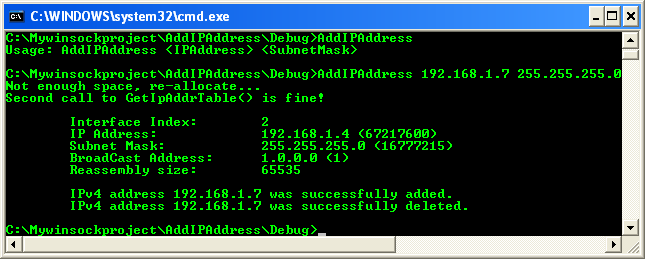

IP Helper Functions: Program Example Using AddIPAddress() Function sample console output
